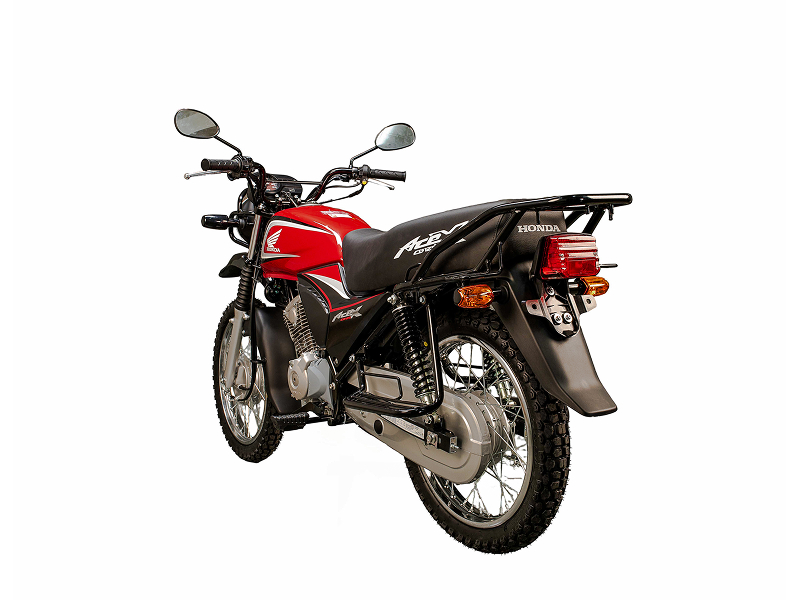

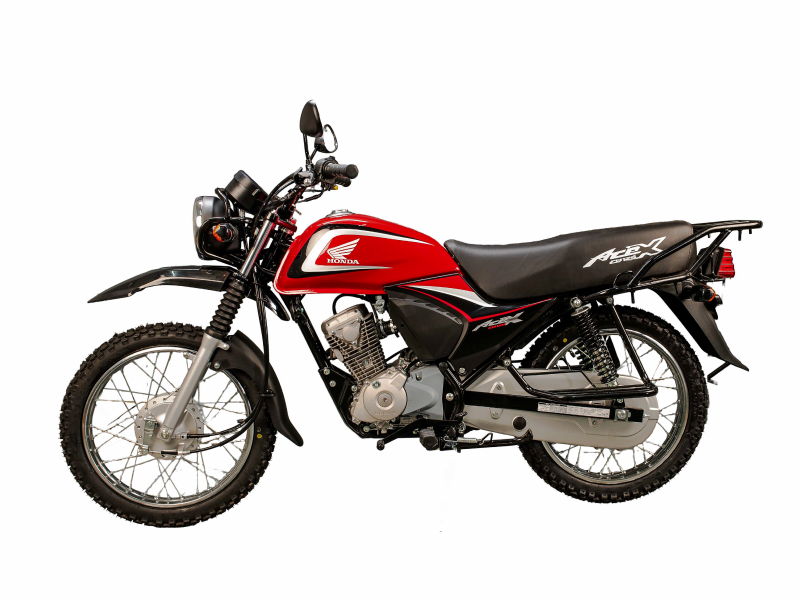

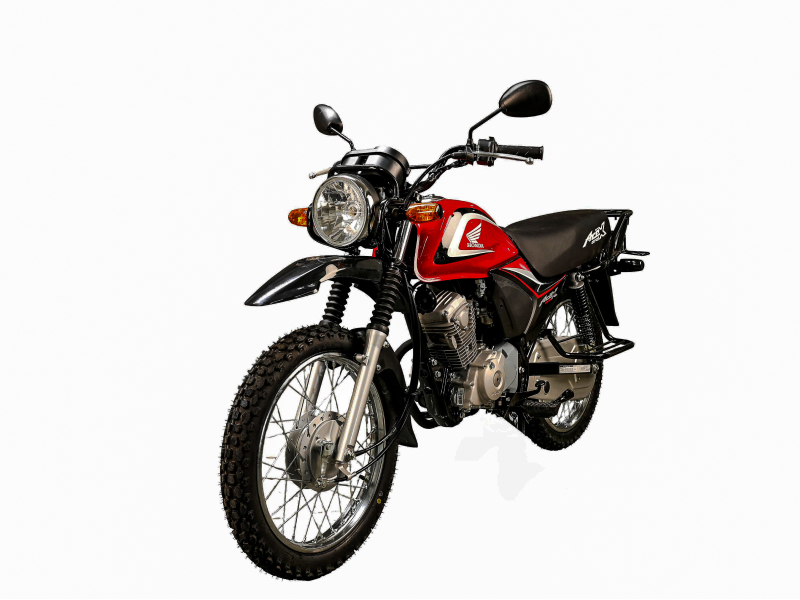

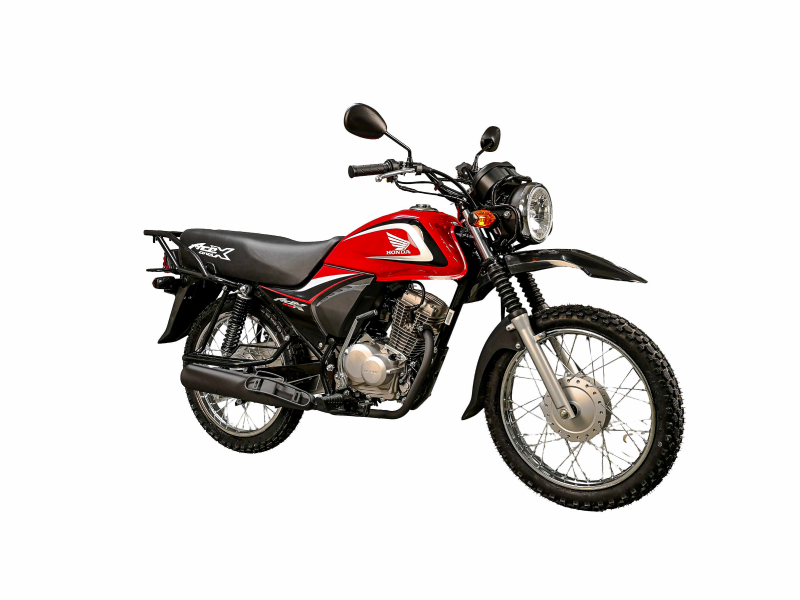

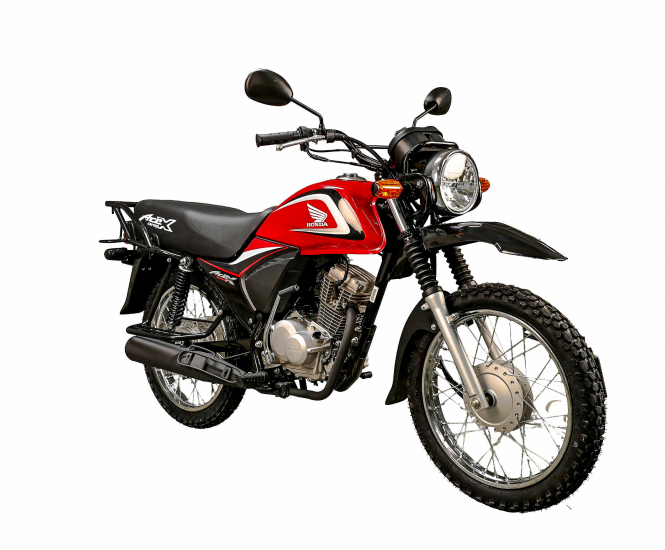

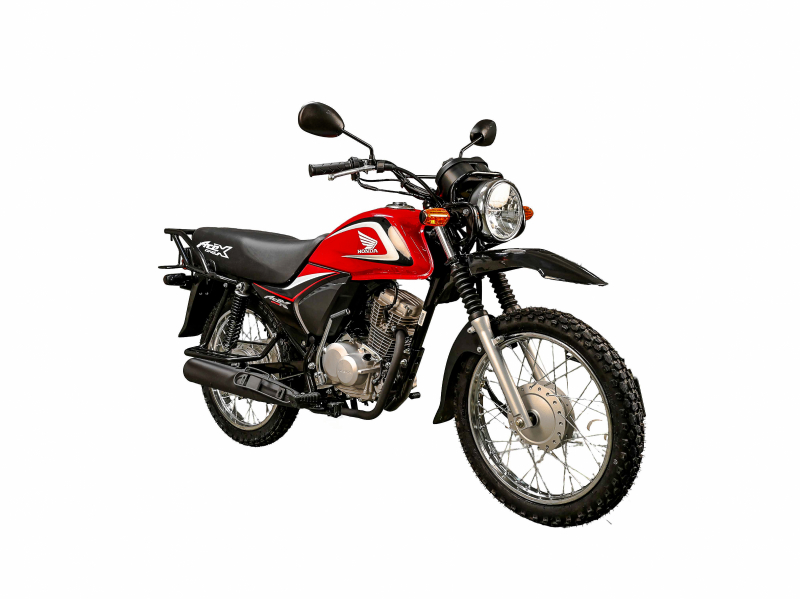

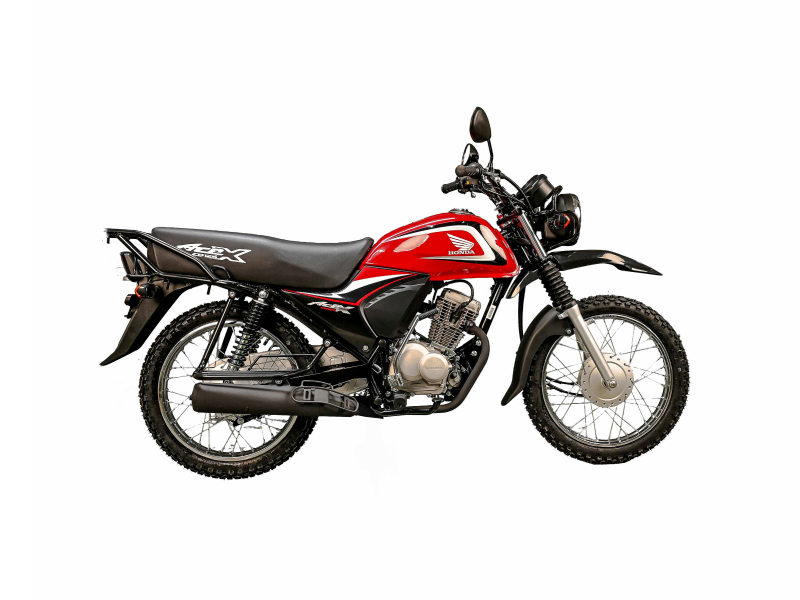

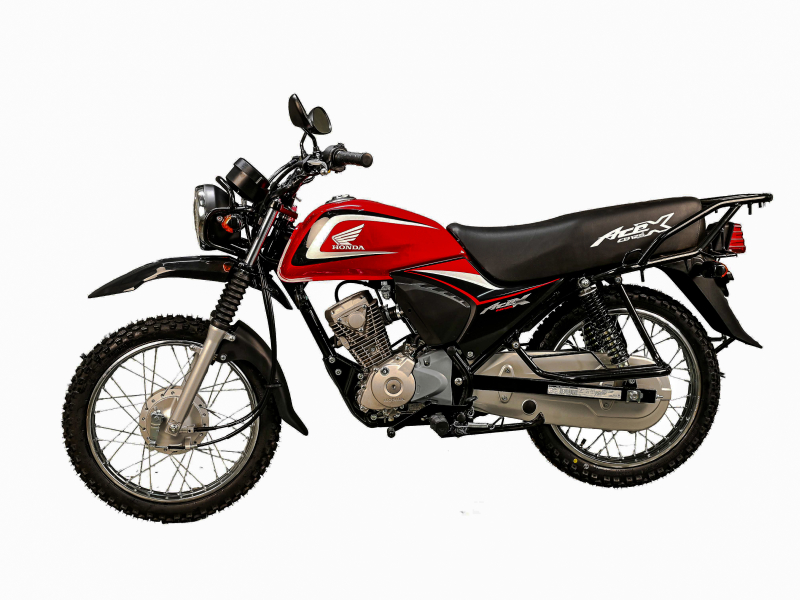

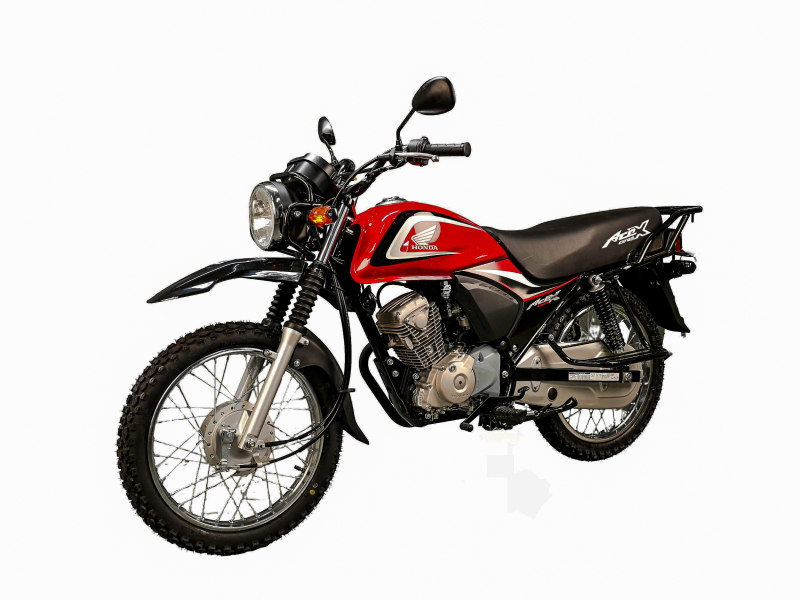

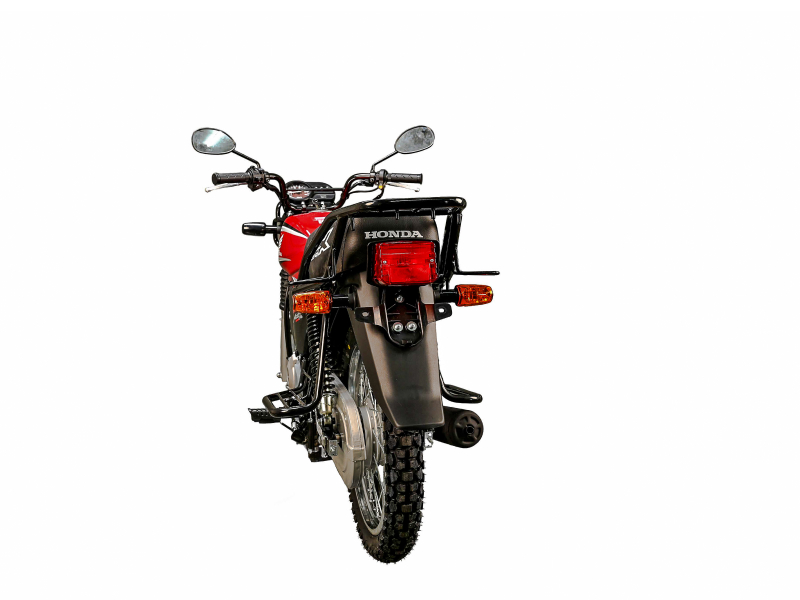

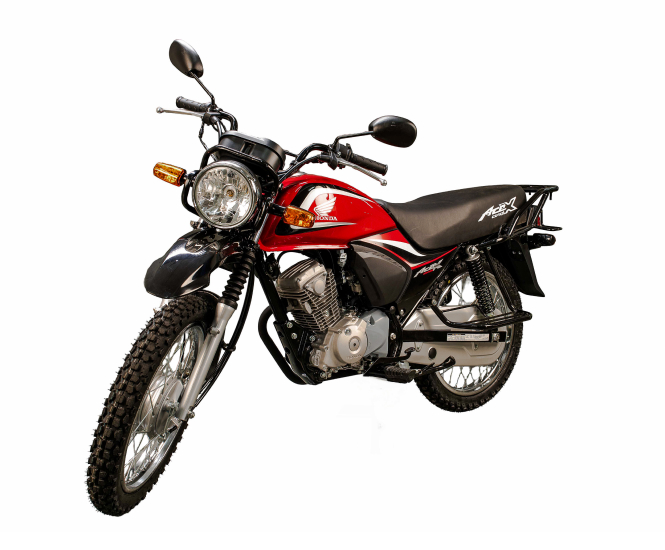

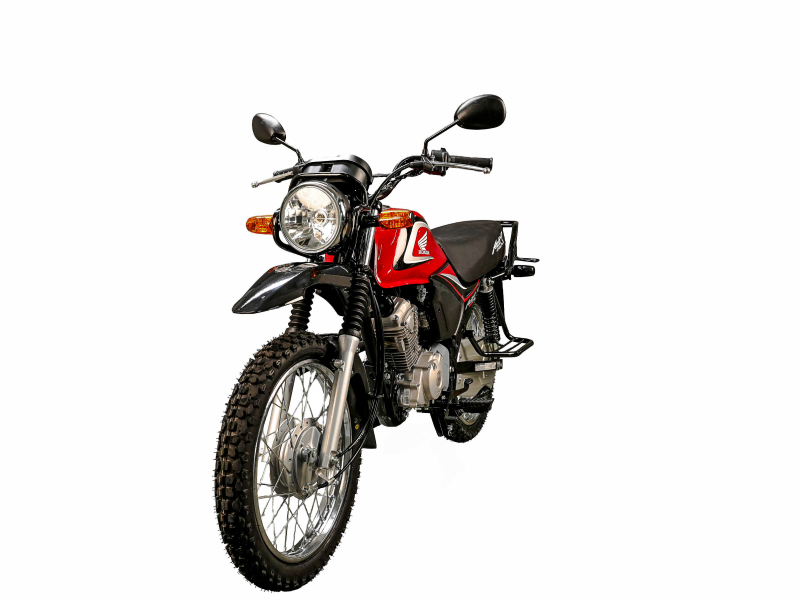

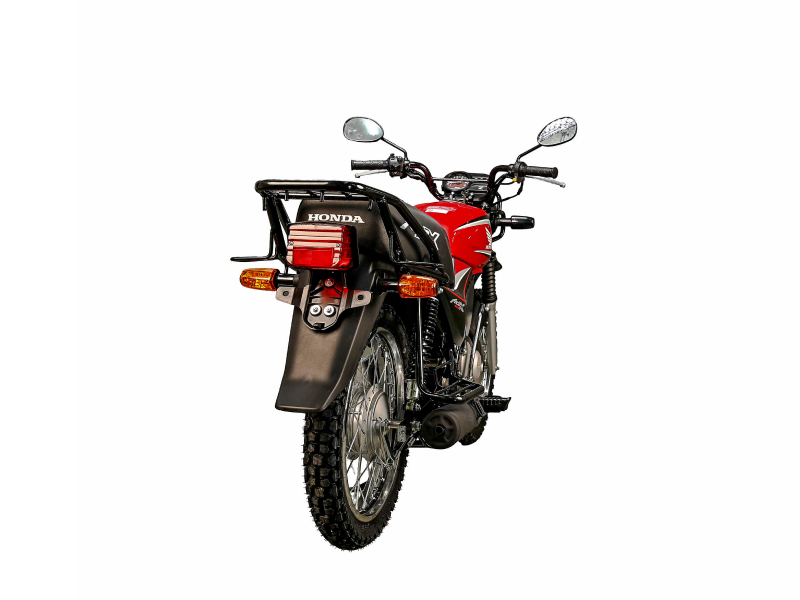

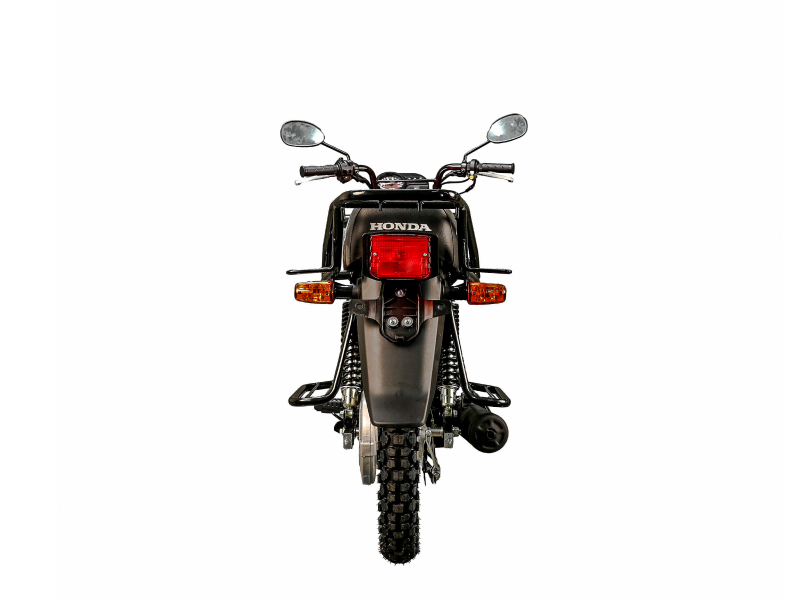

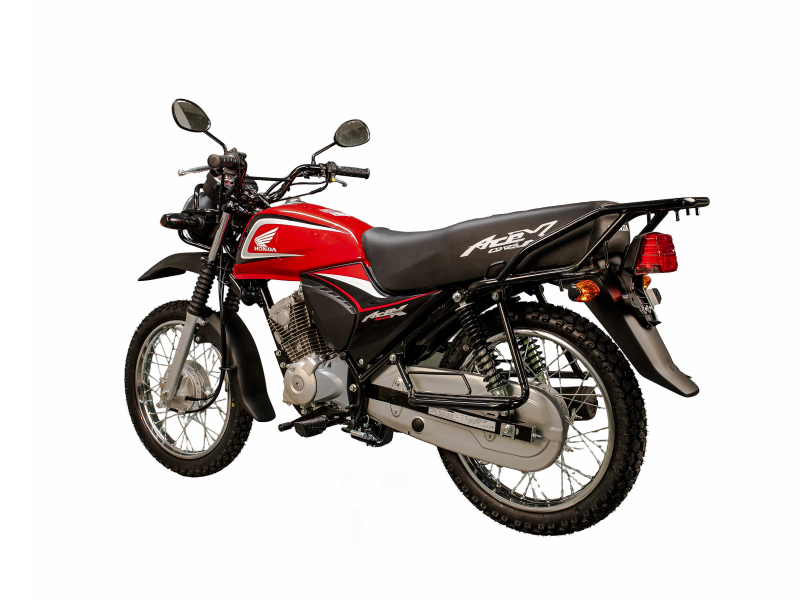

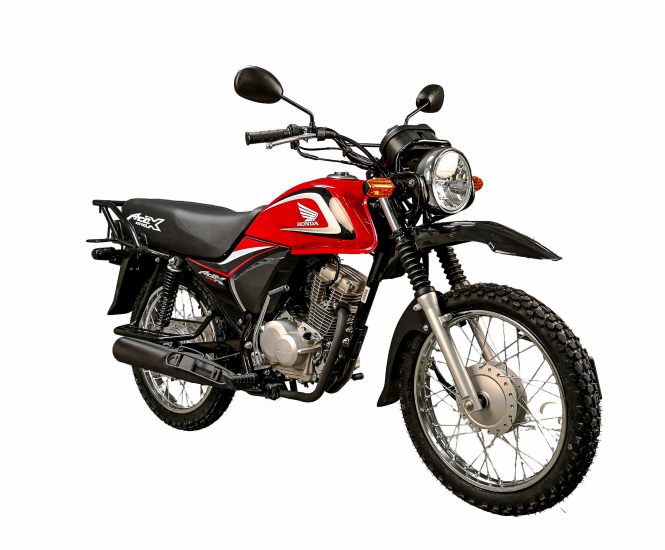

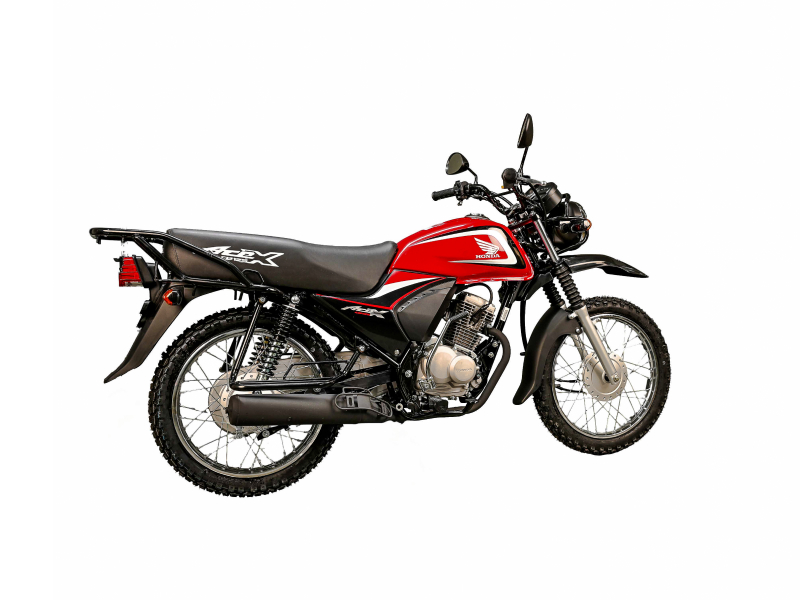

HONDA ACE TUFF

The Honda Ace Tuff is a derivative of the Honda Ace 125. Same as the Honda Ace 125, the Honda Ace Tuff is practical and reliable when riding around- above all, it is excellent for rough terrain areas.

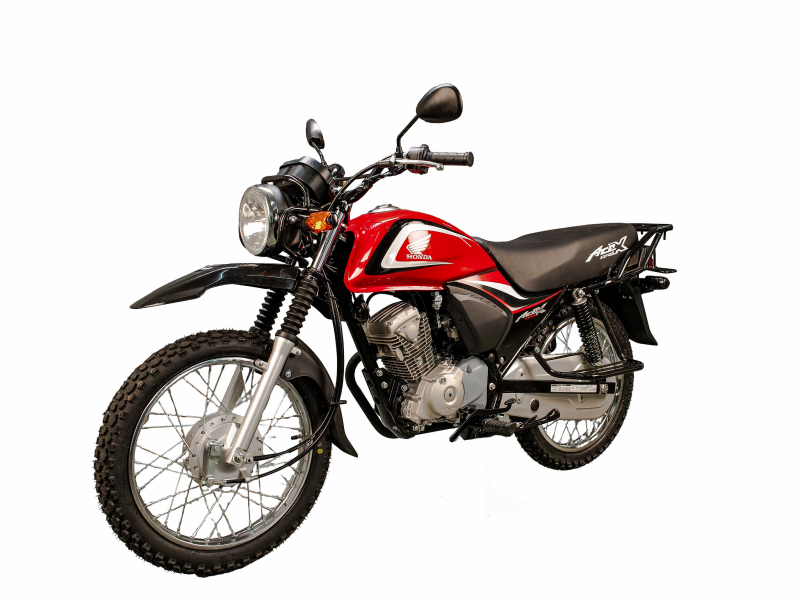

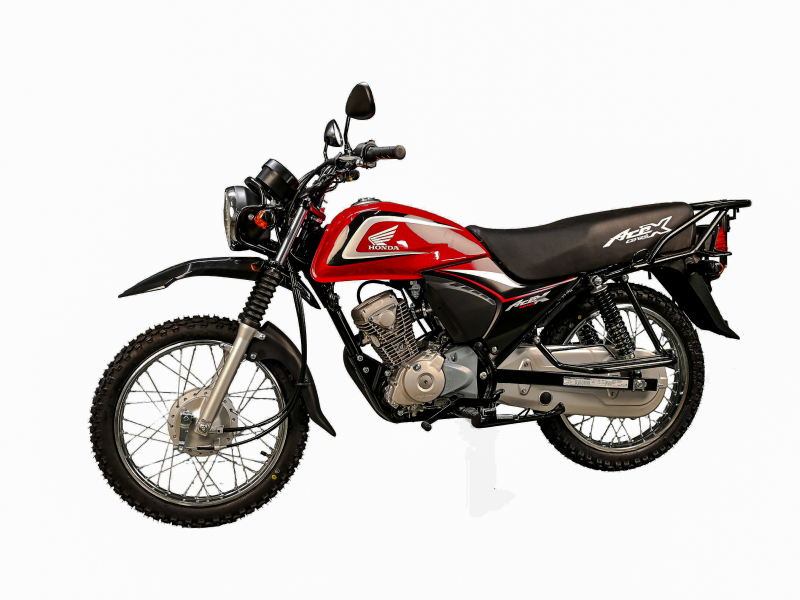

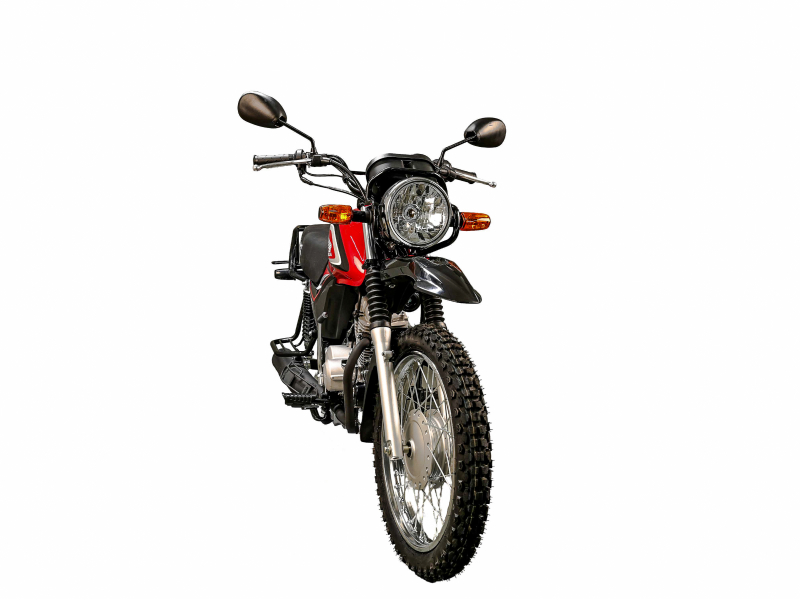

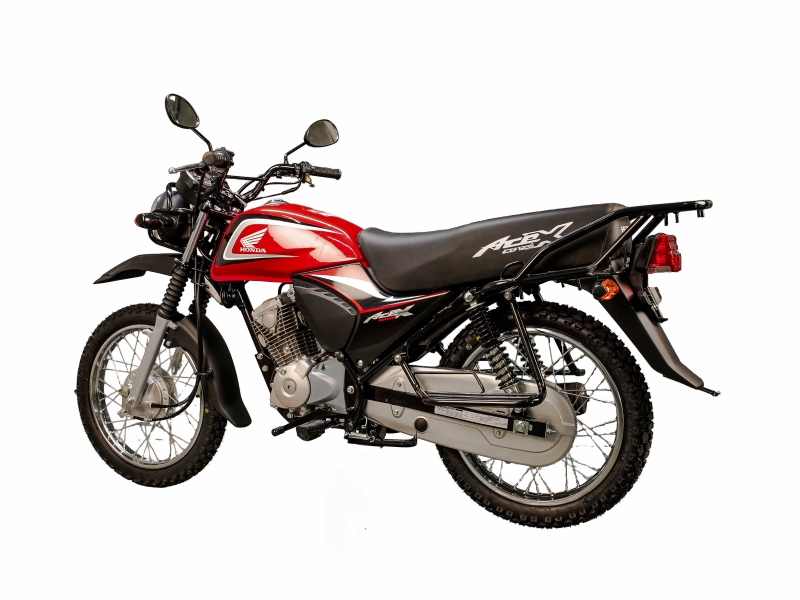

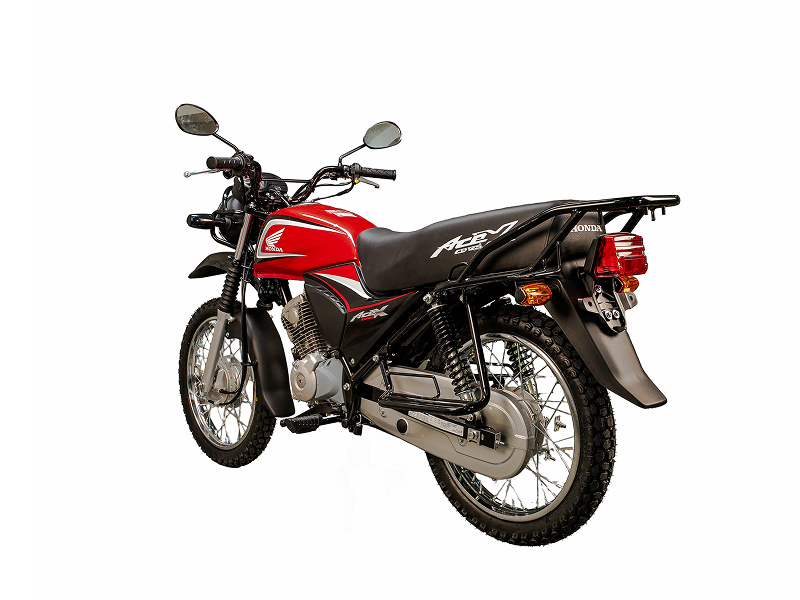

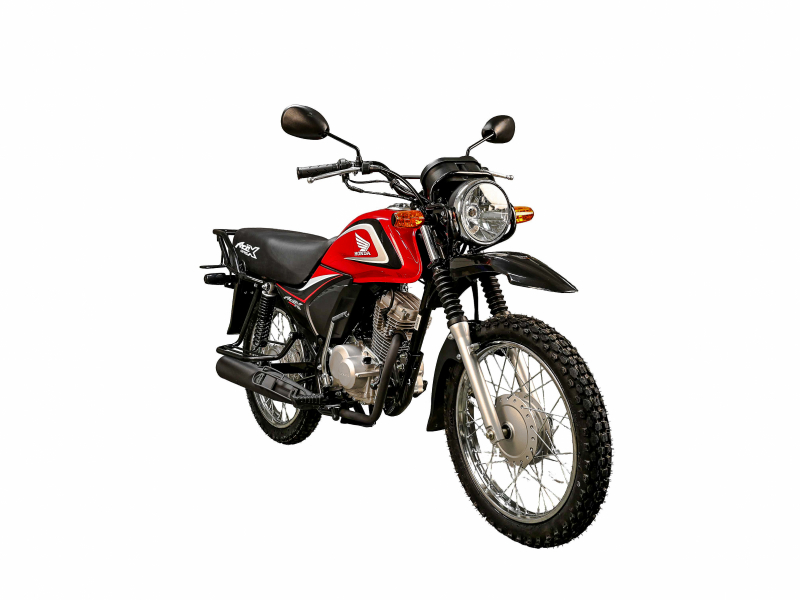

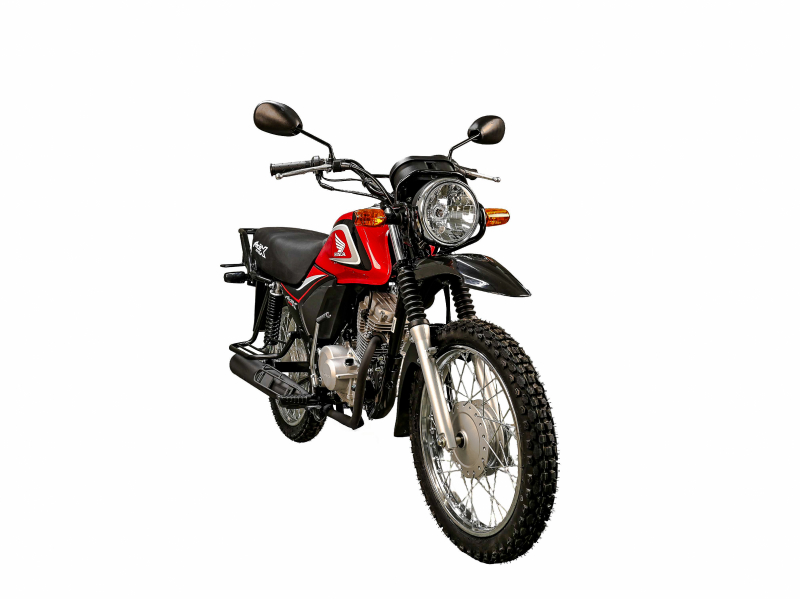

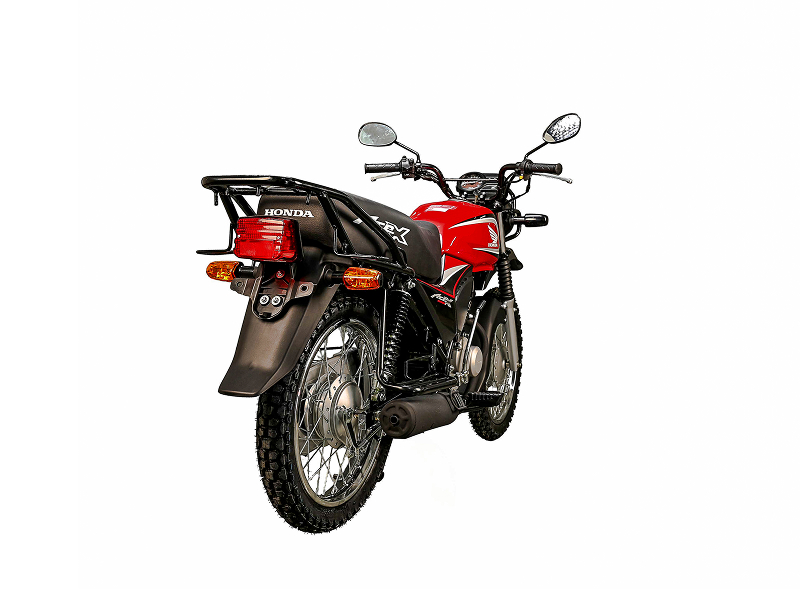

Drag below to rotate

TECHNICAL SPECIFICATIONS

Engine4-Stroke,OHC, Single Cylinder
Number of Gears4-Speed
CoolingAir-Cooled
Displacement124.8cc
Max. Net Power6.32 KW/6,500 rpm
Max. Net Torque10.12 Nm/5,000 rpm
Bore x Stroke52.4 mm x 57.9 mm
Compression Ratio9.0:1
Starting MethodElectric Start & Kick Start
IgnitionCDI
Transmission TypeManual
Dimension (LxWxH)2,081 mm x 809 mm x 1,069 mm
Wheelbase1,310 mm
Seat Height764 mm
Ground Clearance159 mm
Kerb Weight115 kg
Fuel Tank CapacityMain: 10.3L/ Reserve: 1.8L
Tyre Size Front2.75 – 18 42P
Tyre Size Rear90/90 – 18M/C 51P
Front BrakeDrum
Rear BrakeDrum
Frame TypeDiamond Steel
Front SuspensionTelescopic Fork
Rear SuspensionSwing-arm
