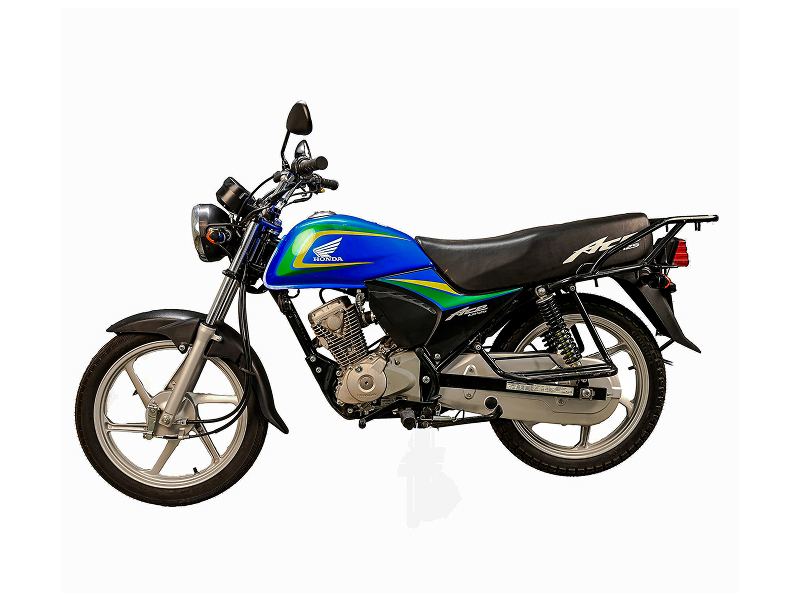

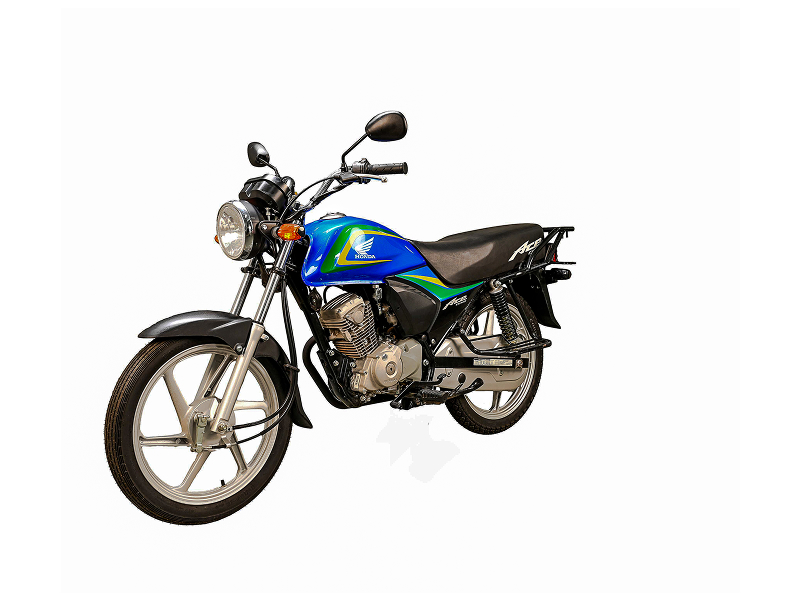

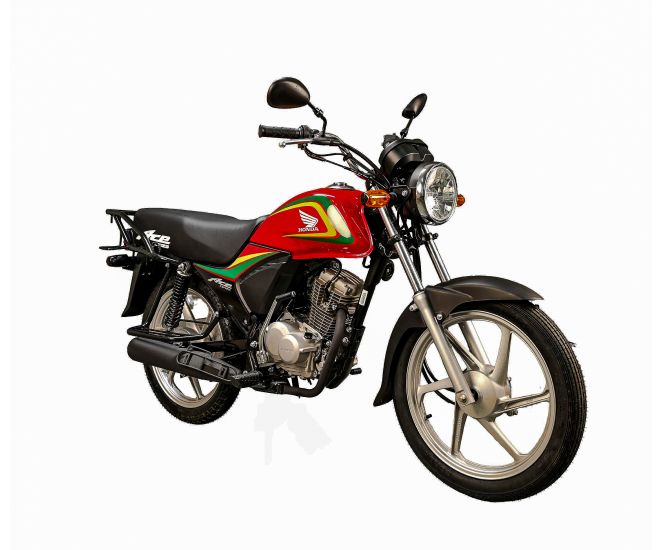

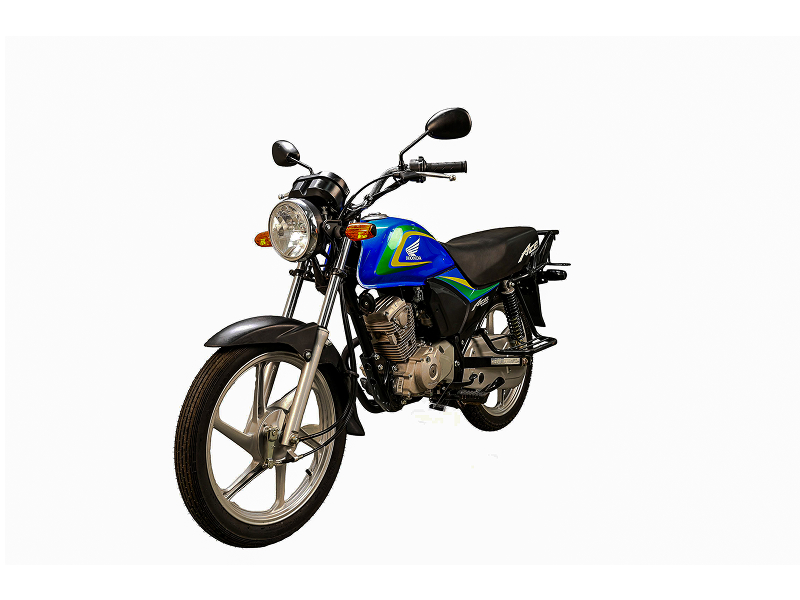

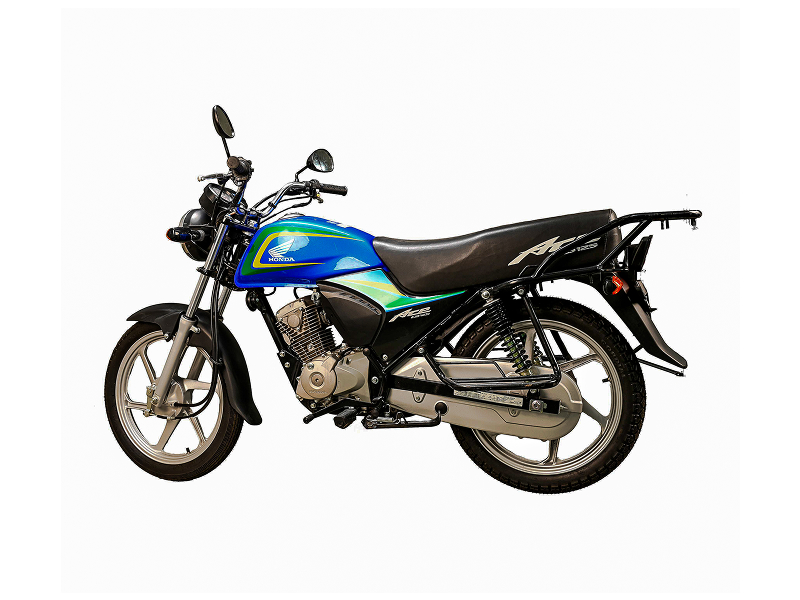

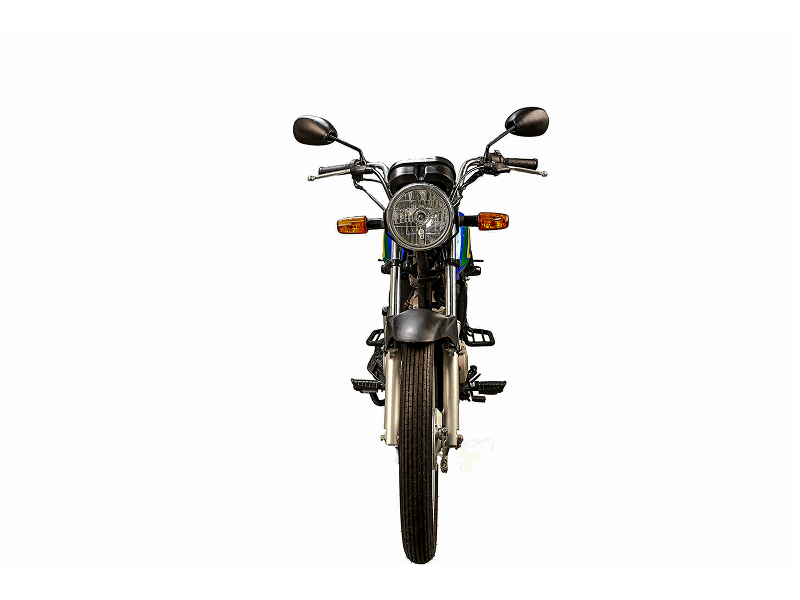

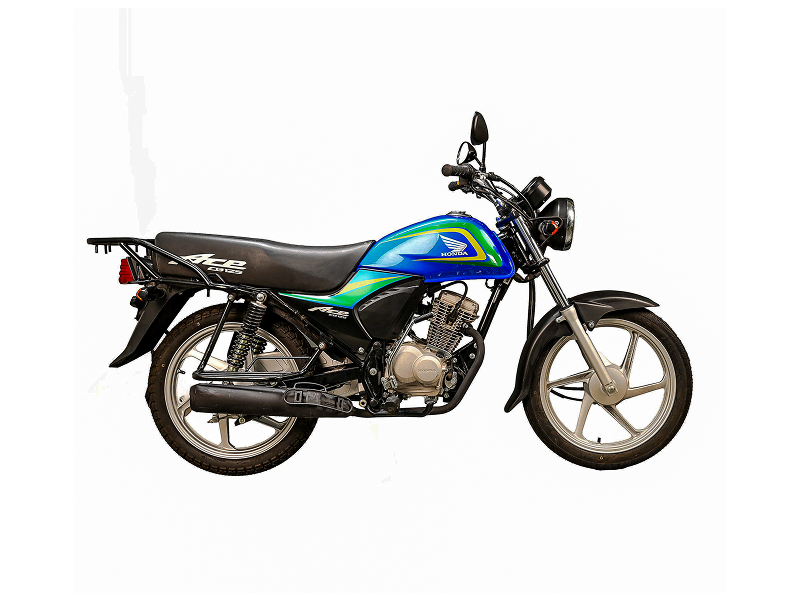

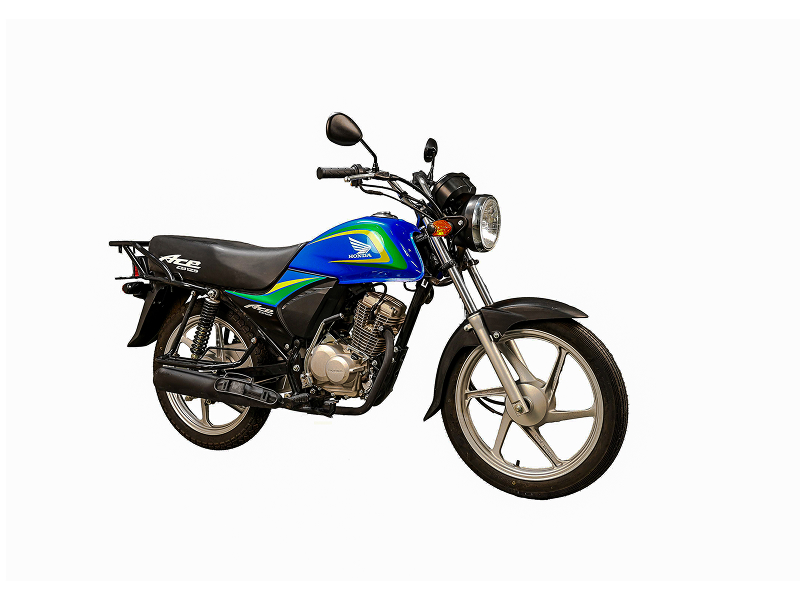

HONDA ACE 125

Honda Ace 125 is a model that is stylish & innovative in its design with enhanced load capacity as well as comfortable long & wide seat. It is equipped with the power of 125cc engine, proven for ruggedness, durability & fuel efficiency. It’s usage cuts across a wide spectrum for private (individual) and commercial mobility needs. The motorcycle boasts of Honda’s legendary reliability, all-round low cost & low maintenance efficiency.

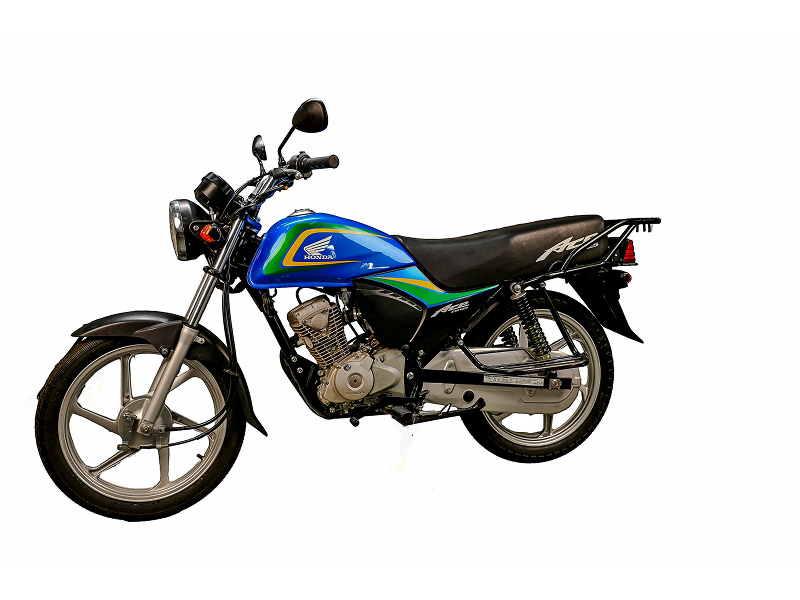

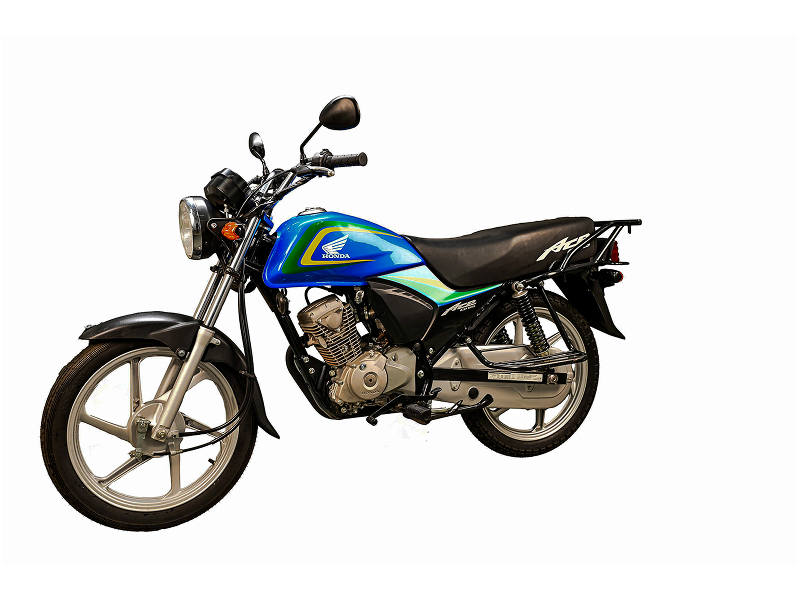

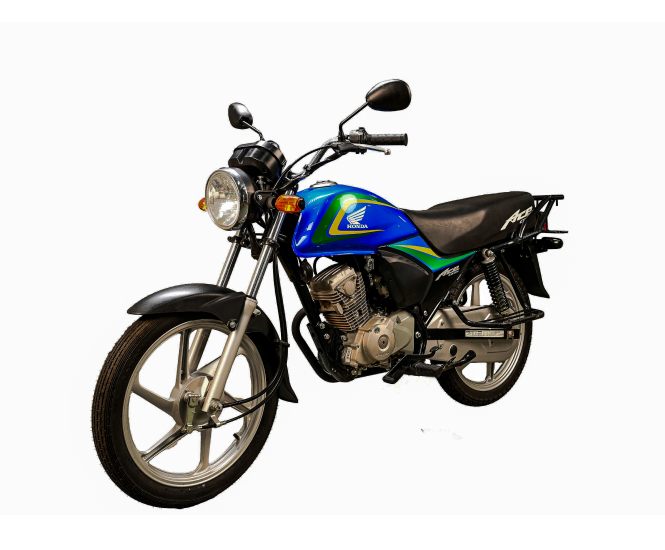

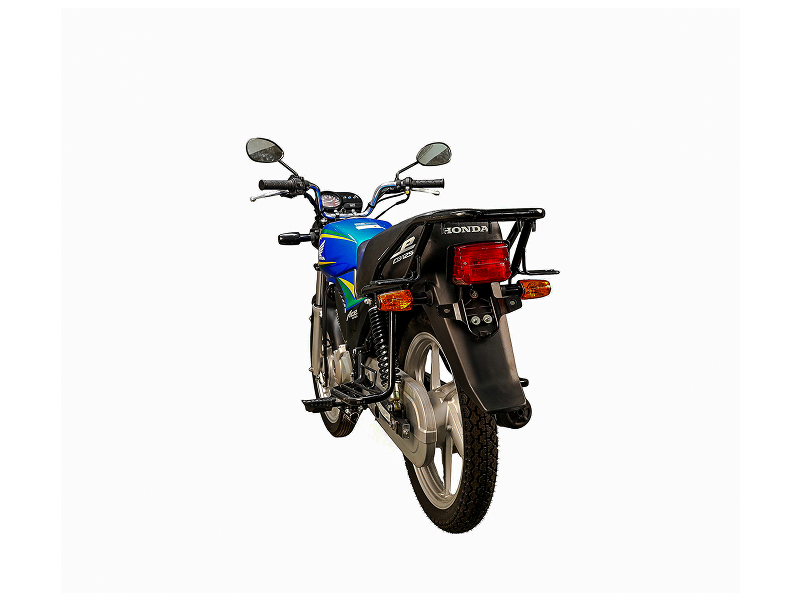

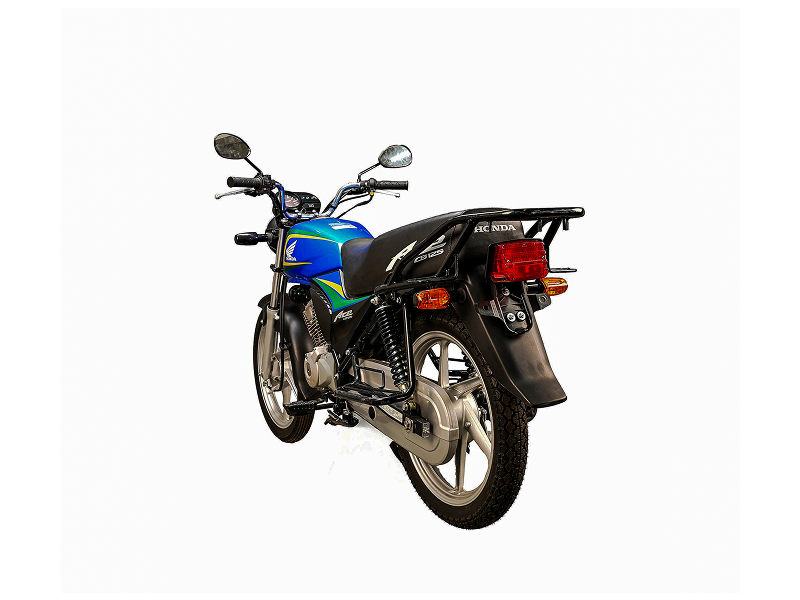

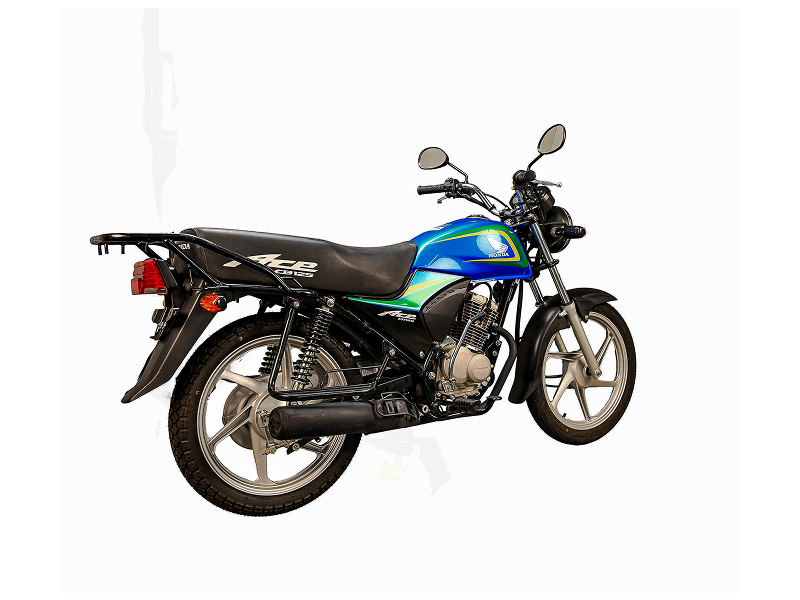

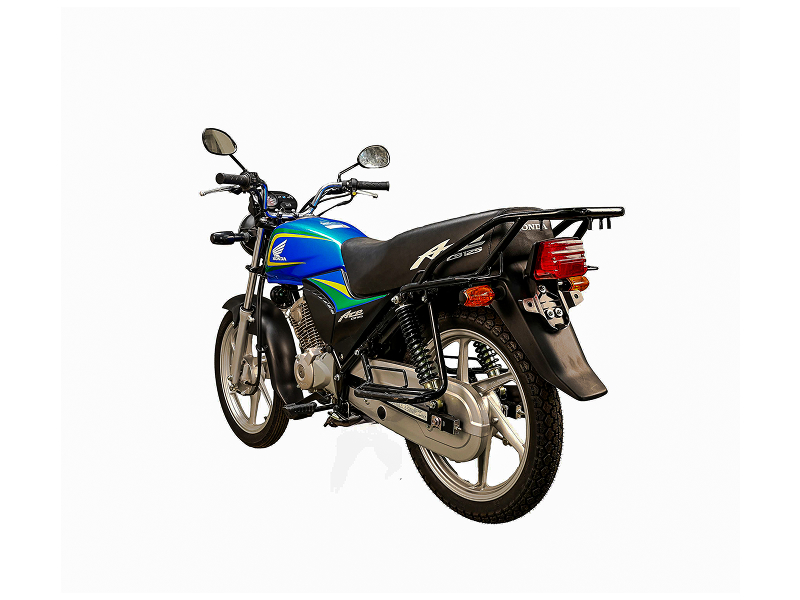

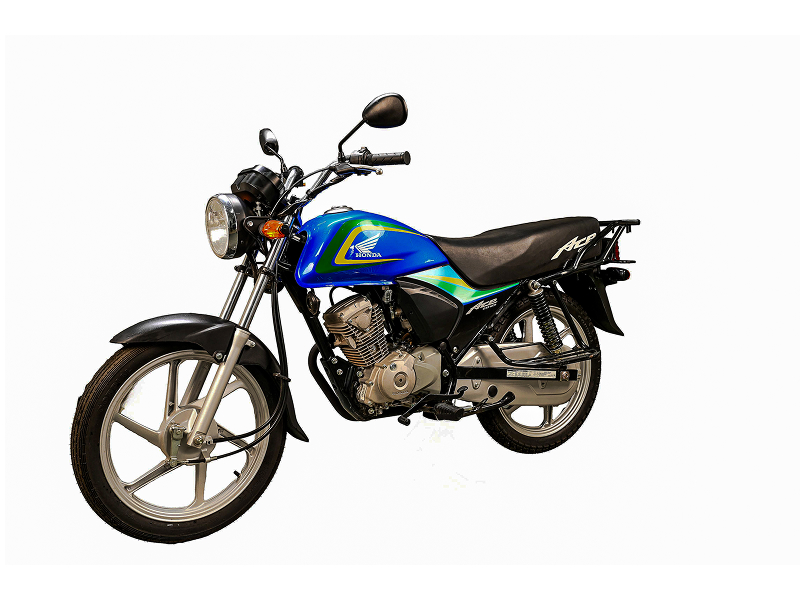

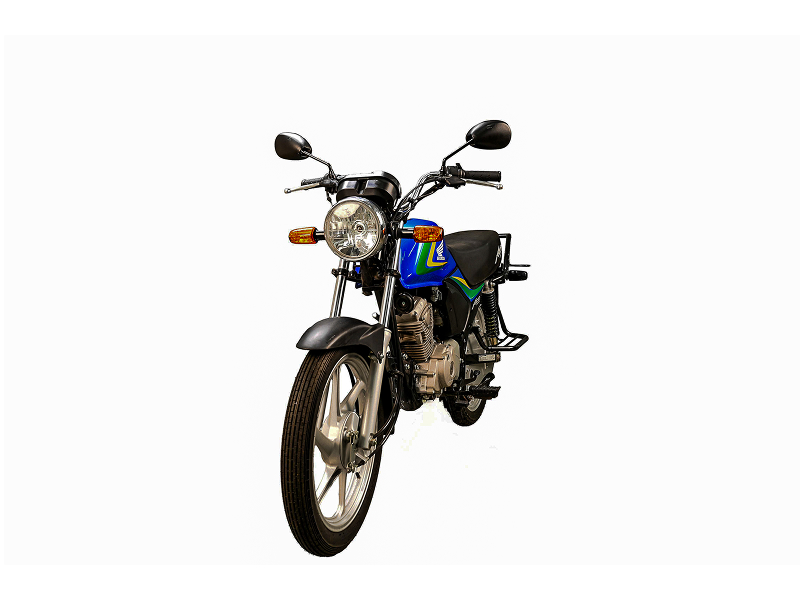

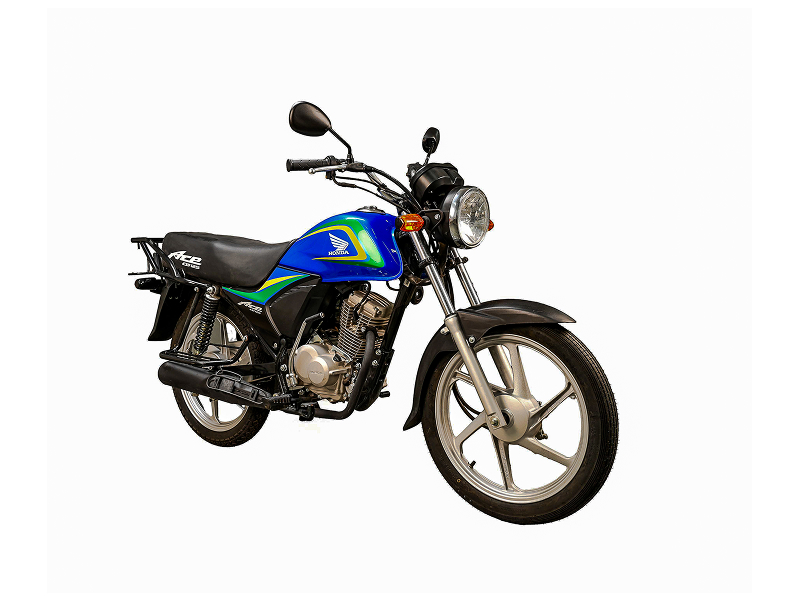

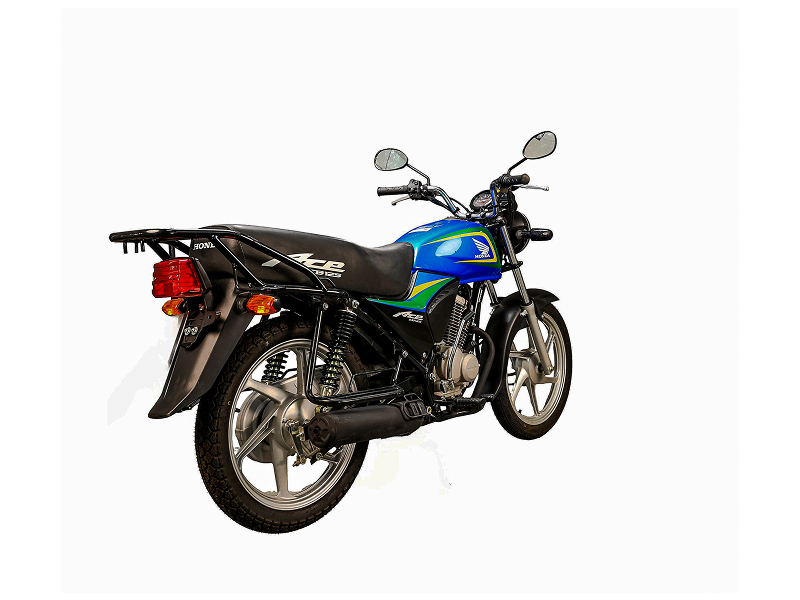

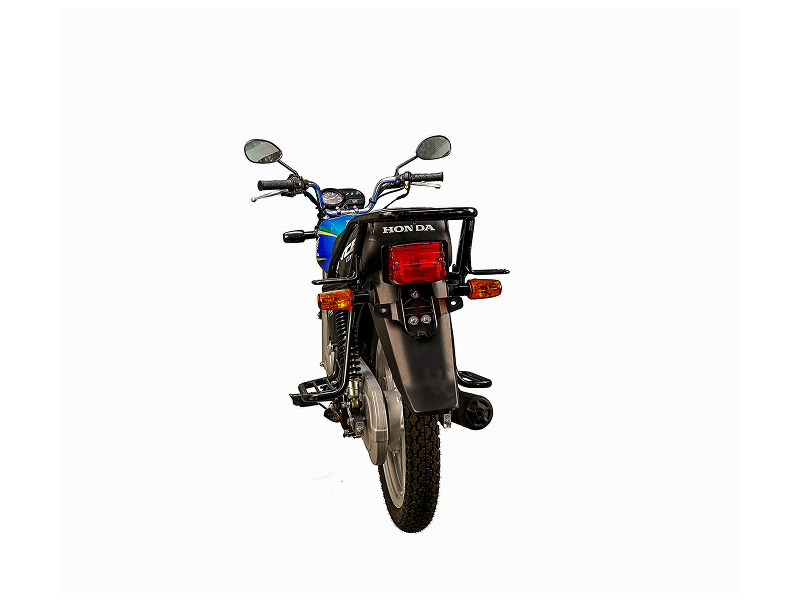

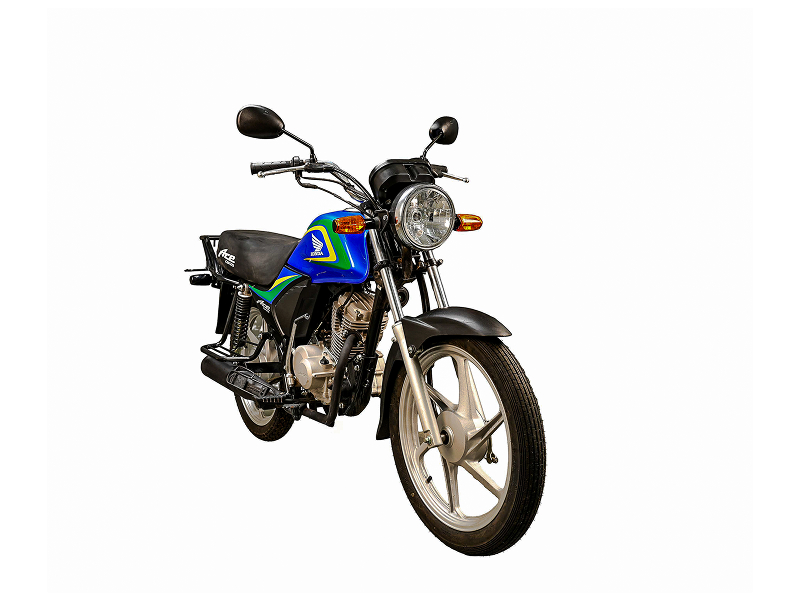

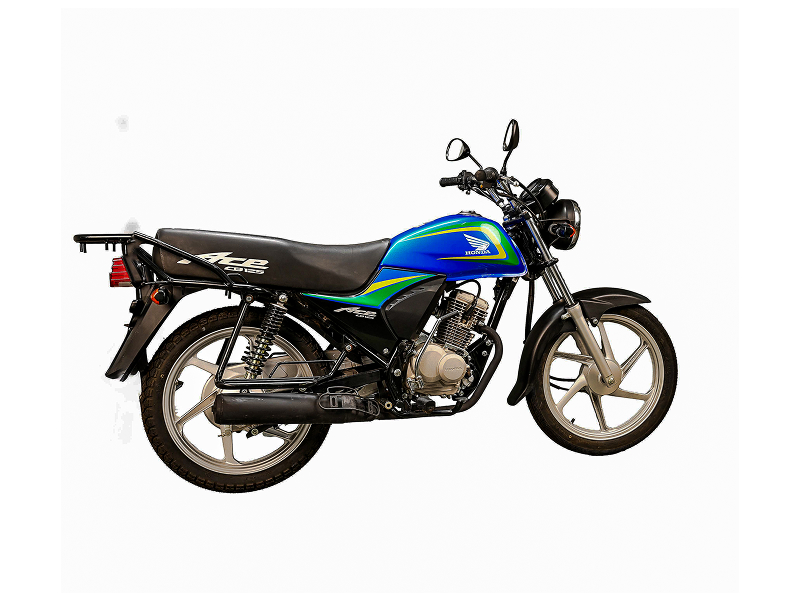

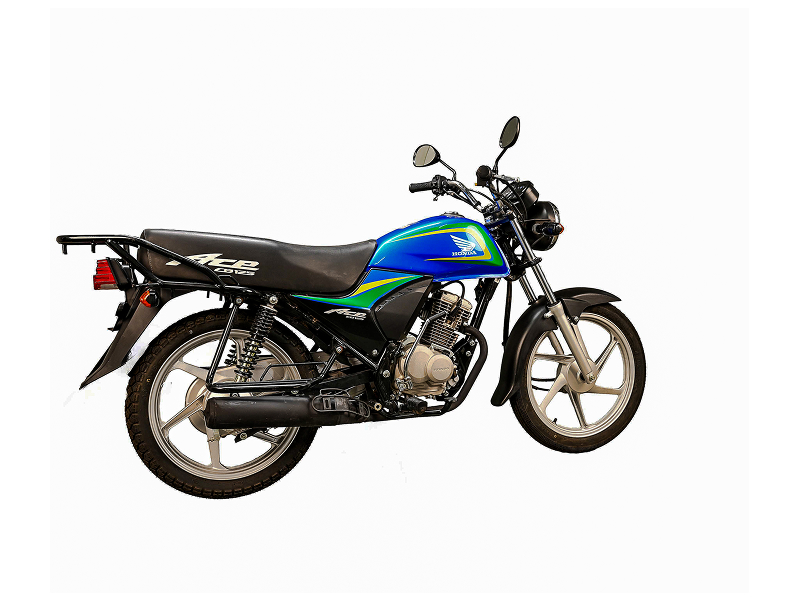

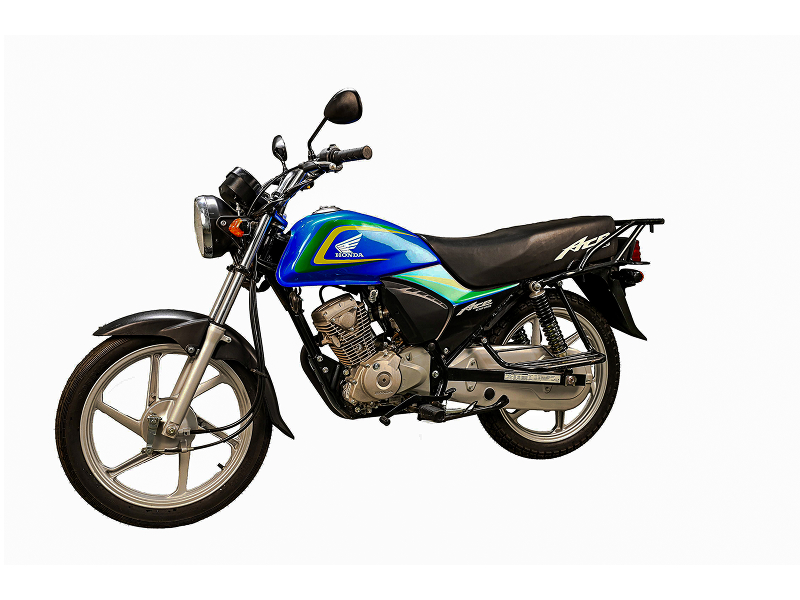

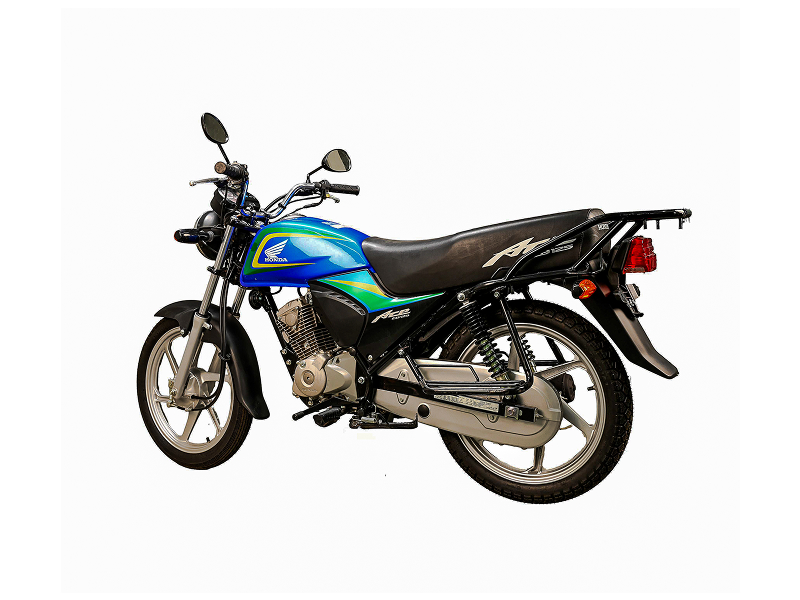

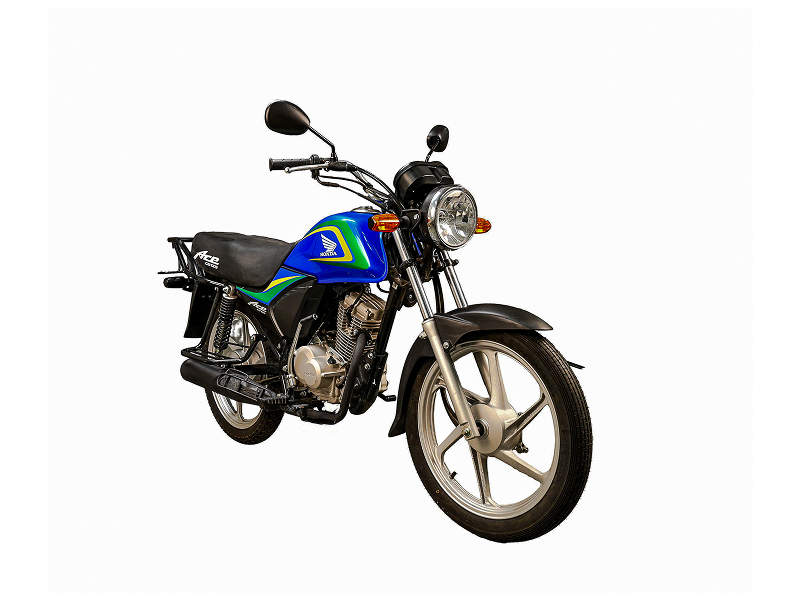

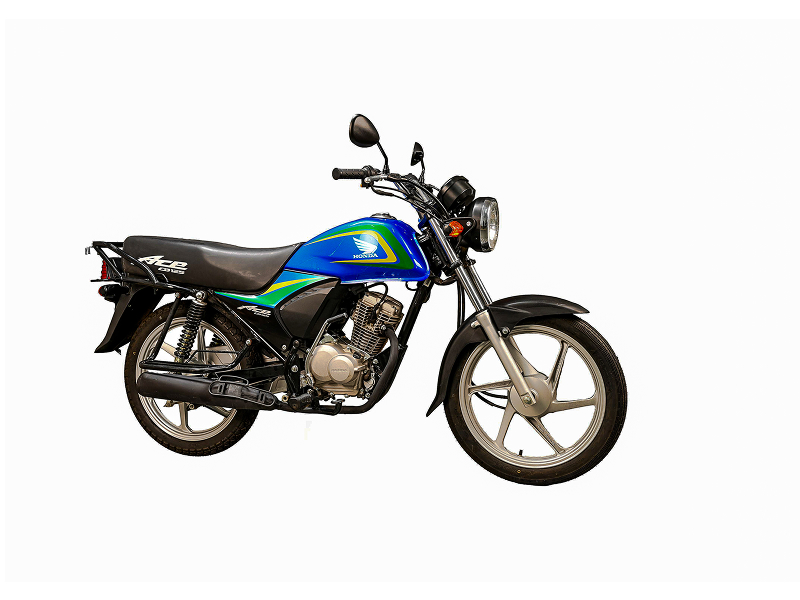

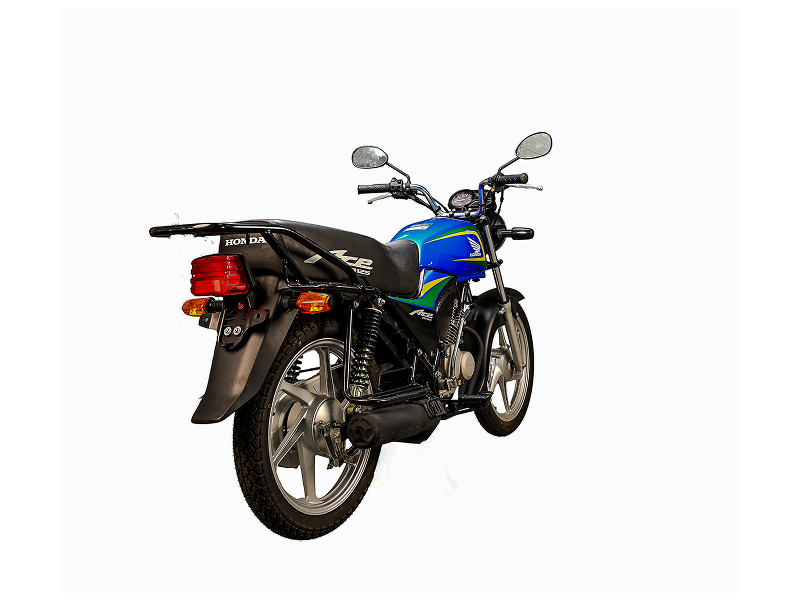

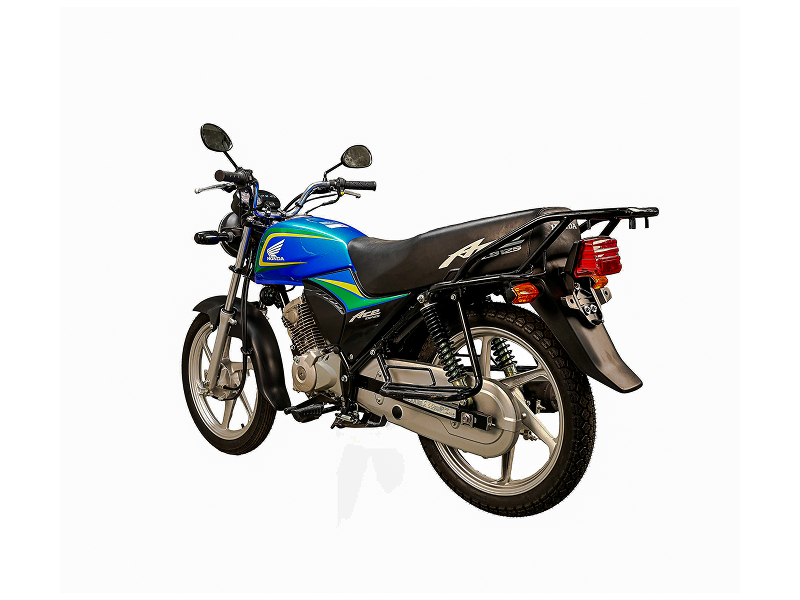

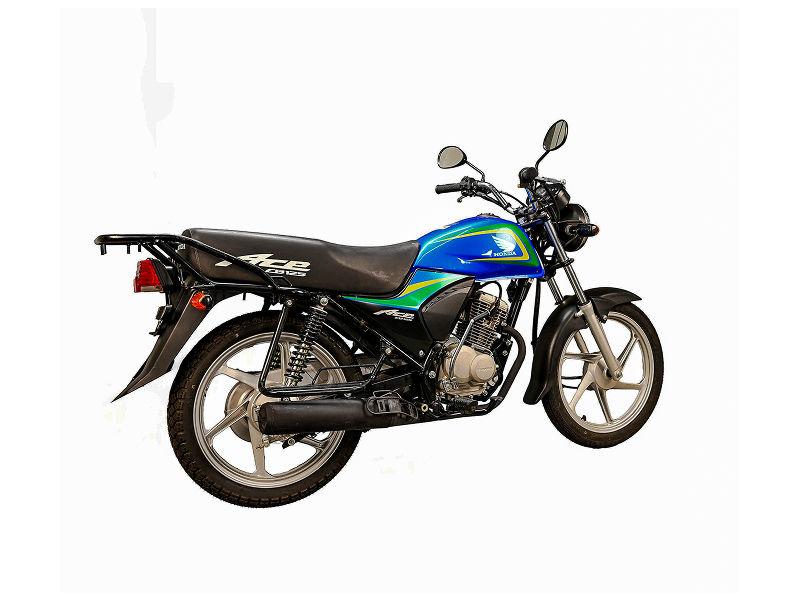

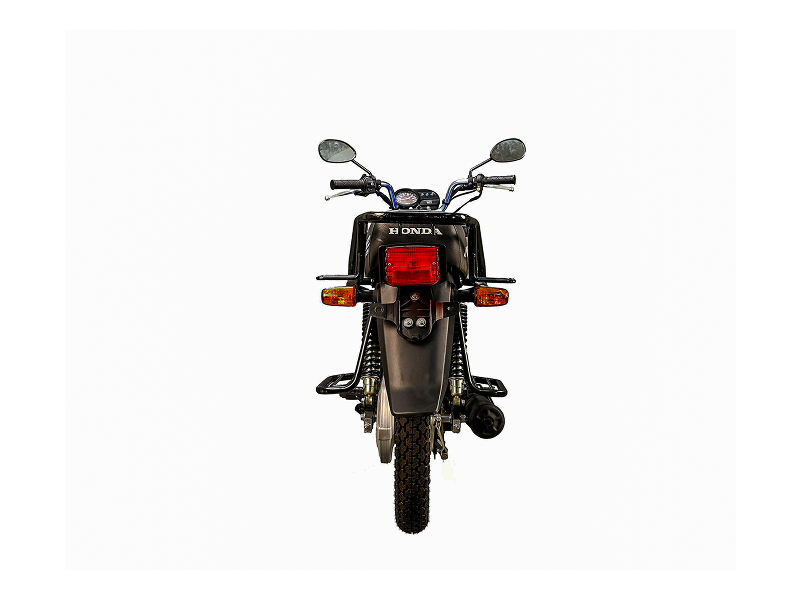

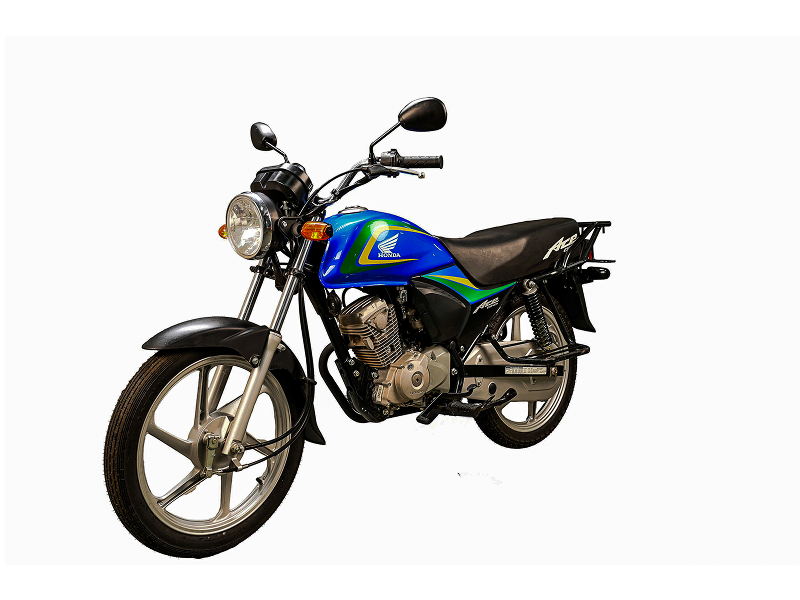

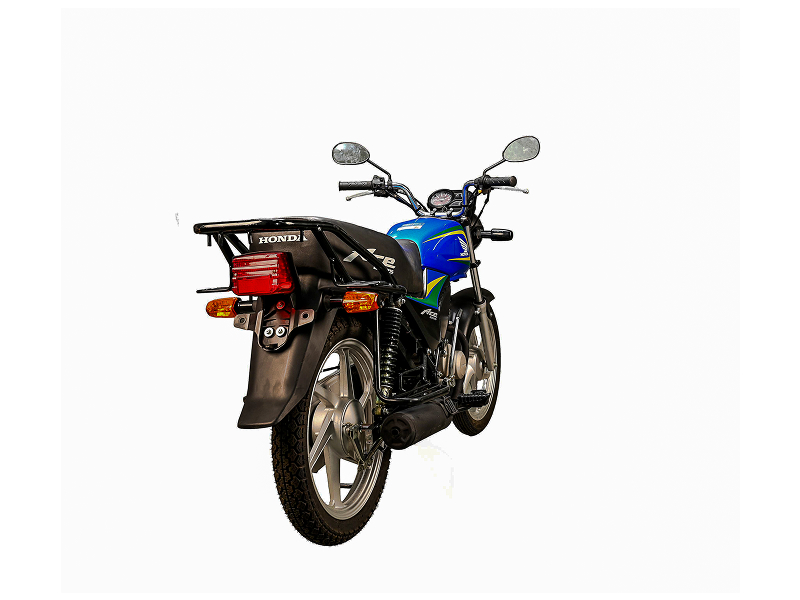

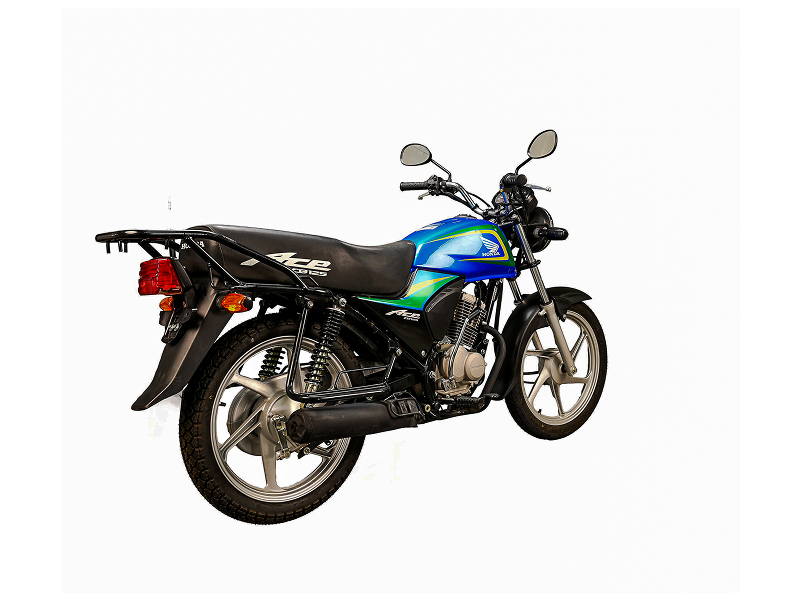

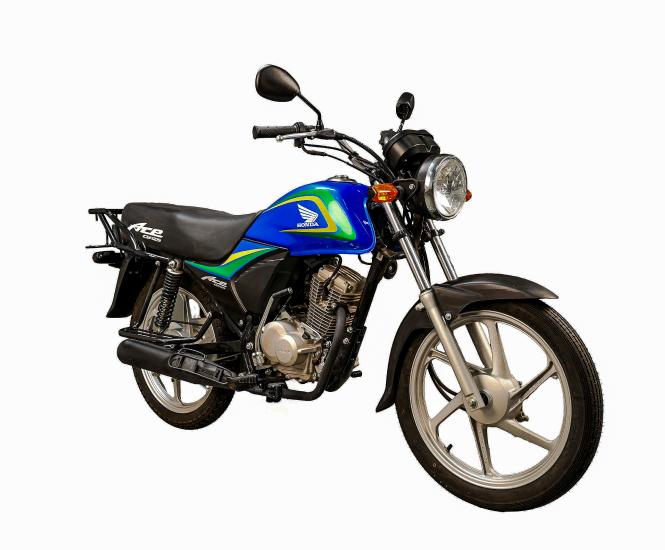

Drag below to rotate

TECHNICAL SPECIFICATIONS

Engine4-Stroke,OHC, Single Cylinder
Number of Gears4-Speed
CoolingAir-Cooled
Displacement124.8cc
Max. Net Power6.32 KW/6,500 rpm
Max. Net Torque10.14 Nm/5,000 rpm
Bore x Stroke52.4 mm x 57.9 mm
Compression Ratio9.0:1
Starting MethodElectric Start & Kick Start
IgnitionCDI
Transmission TypeManual
Dimension (LxWxH)2,050 mm x 751 mm x 1,056 mm
Wheelbase1,310 mm
Seat Height760 mm
Ground Clearance156 mm
Kerb Weight115 kg
Fuel Tank CapacityMain: 10L Reserve 2.5L
Tyre Size Front80/100 – 18M/C 47P
Tyre Size Rear90/90 – 18M/C 51P
Front BrakeDrum
Rear BrakeDrum
Frame TypeDiamond Steel
Front SuspensionTelescopic Fork
Rear SuspensionSwing-arm
