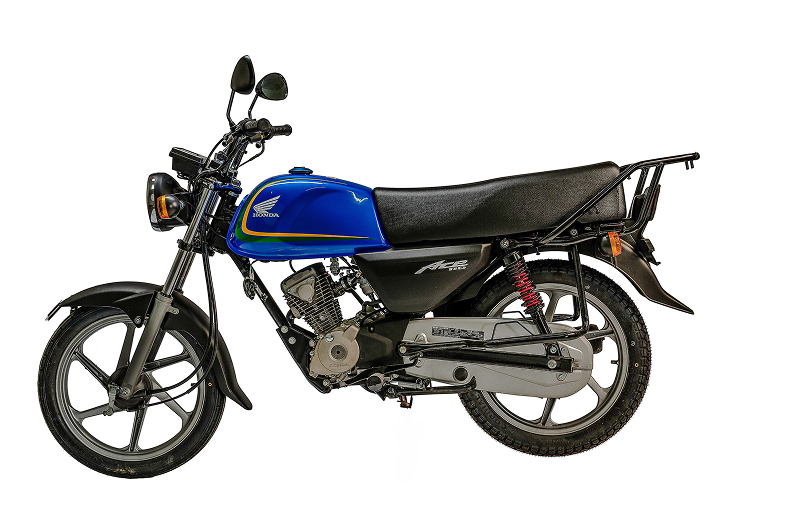

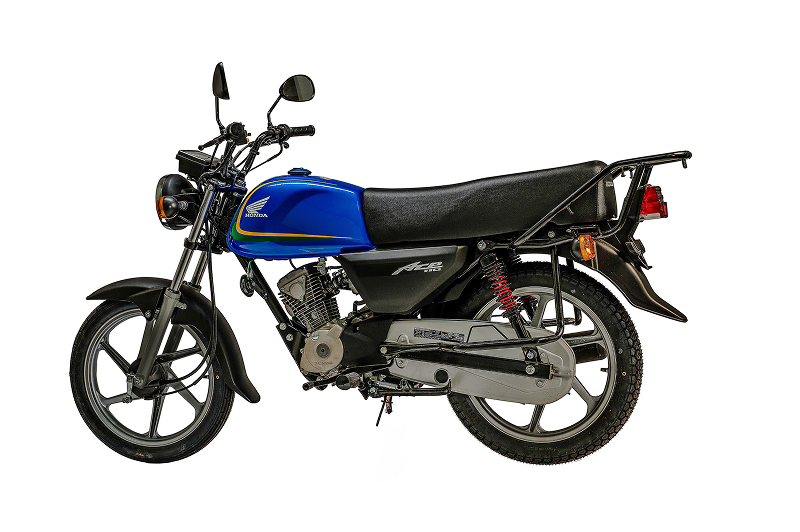

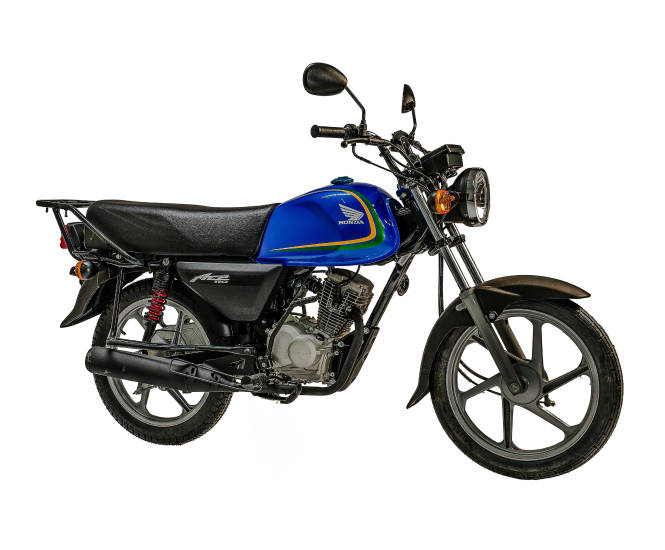

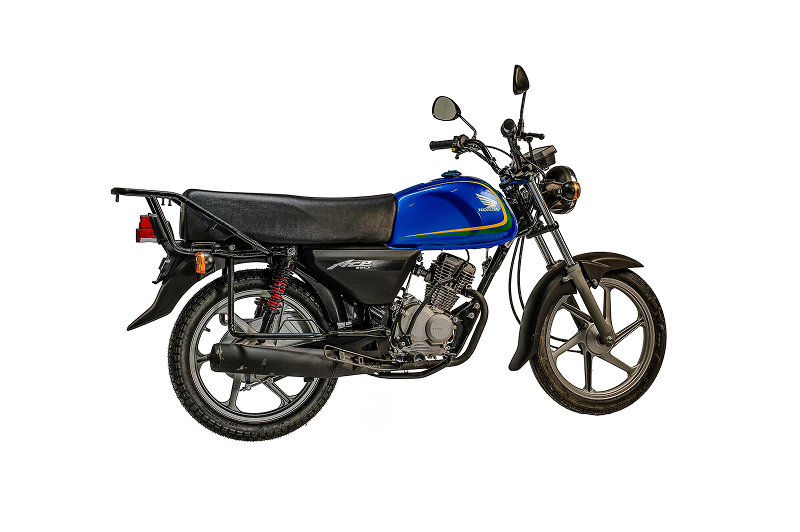

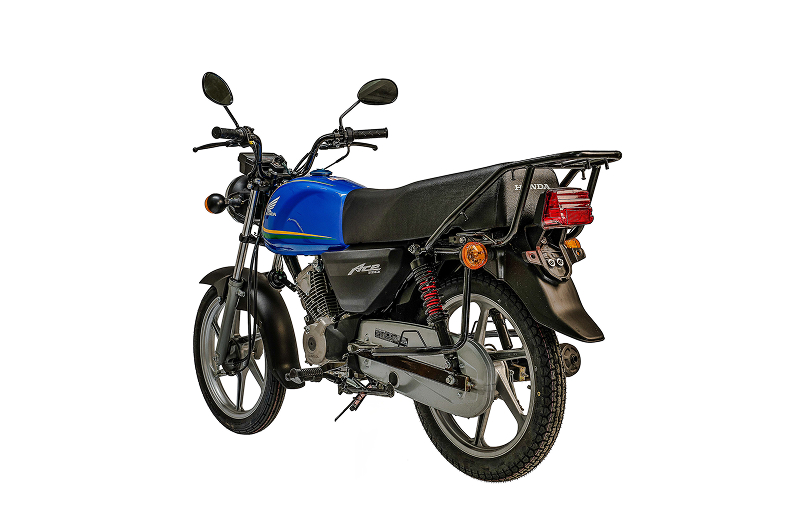

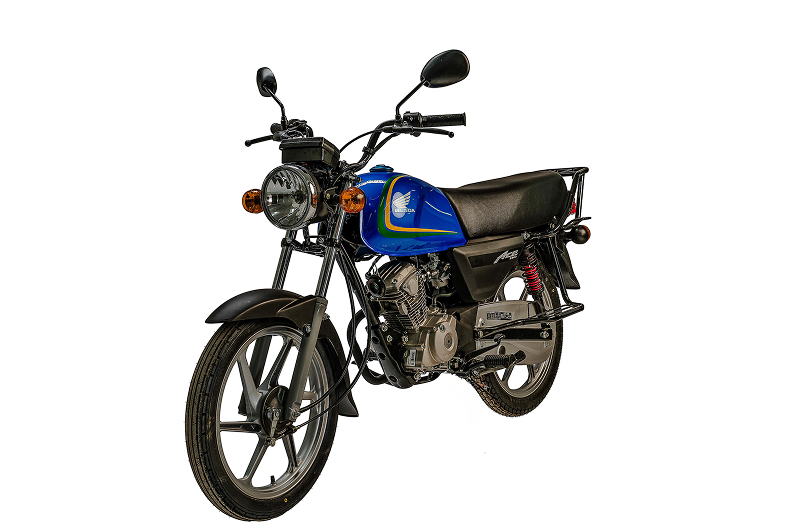

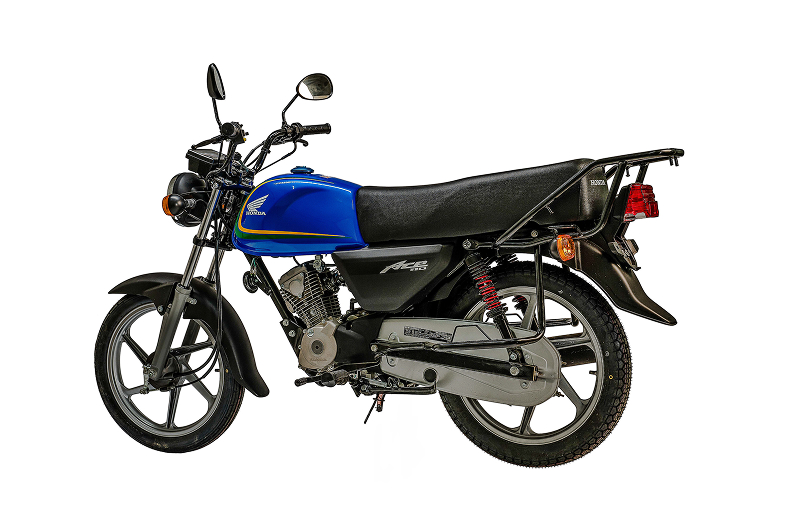

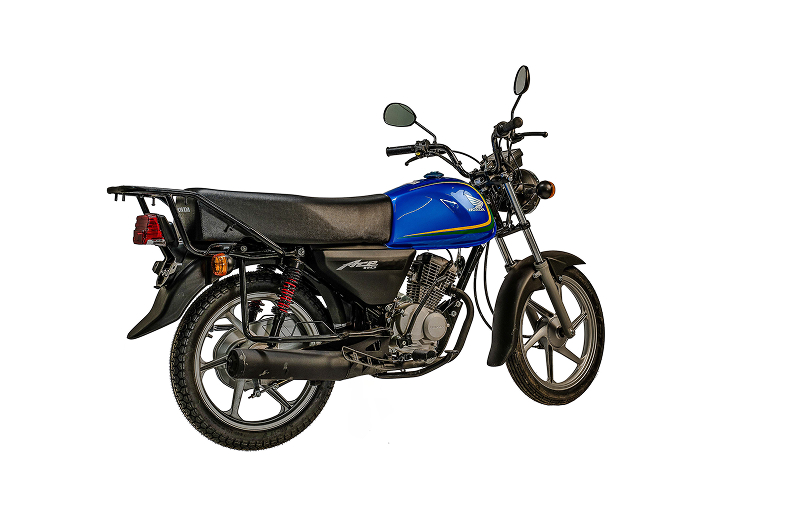

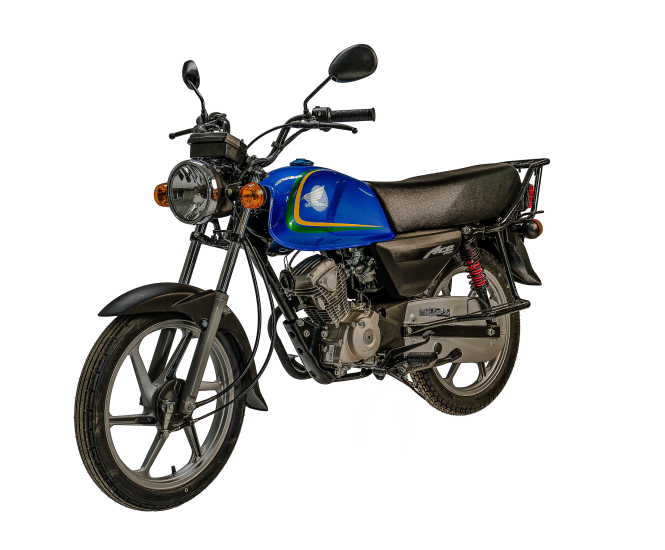

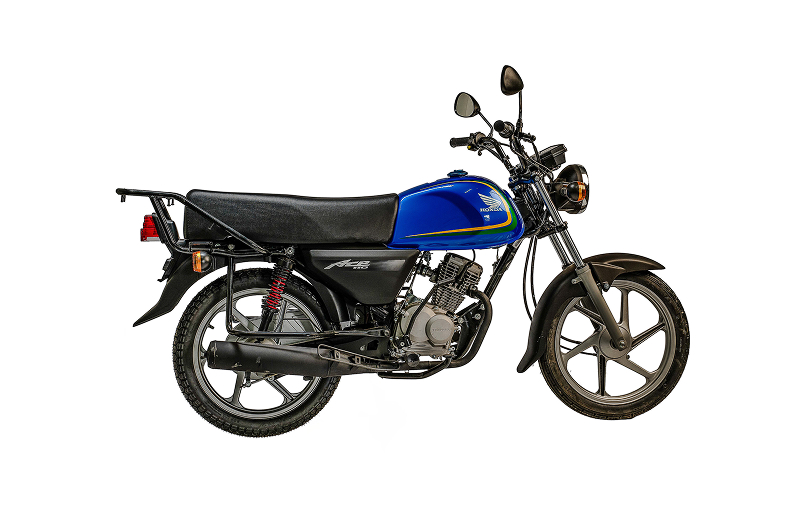

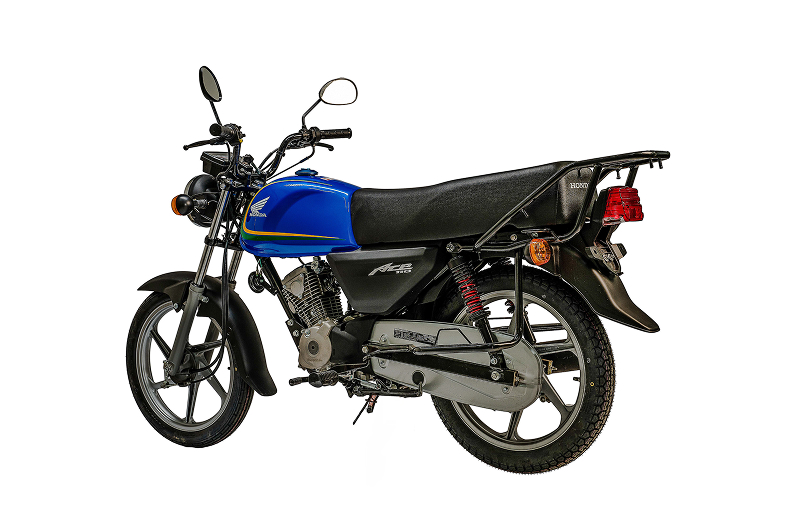

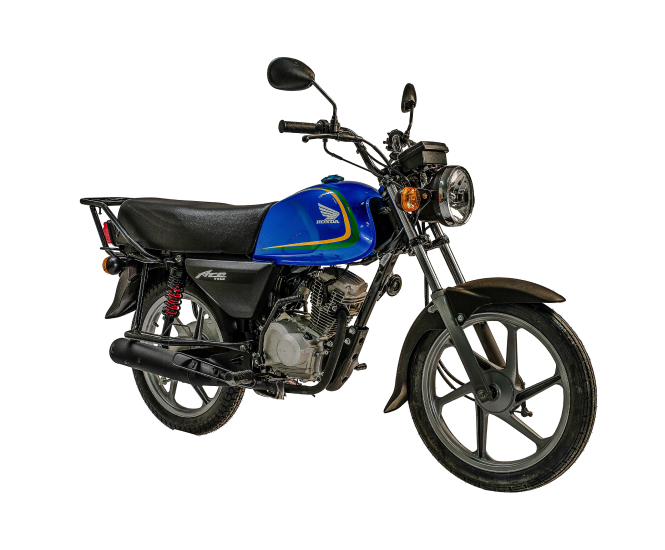

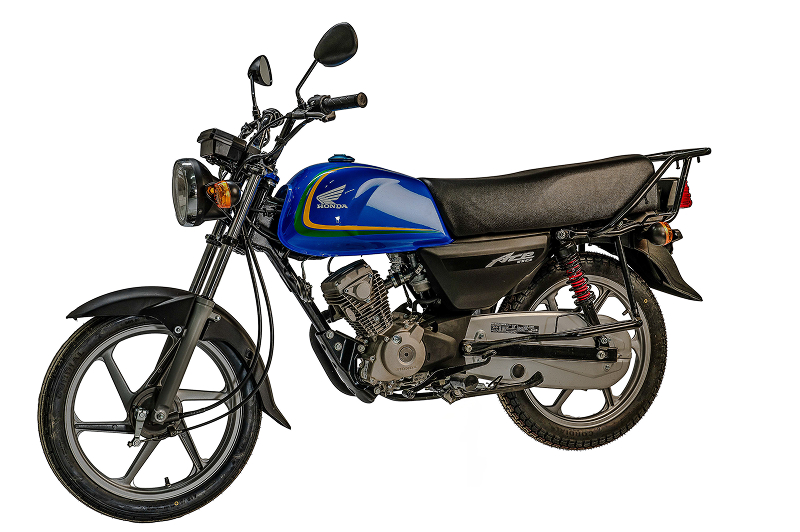

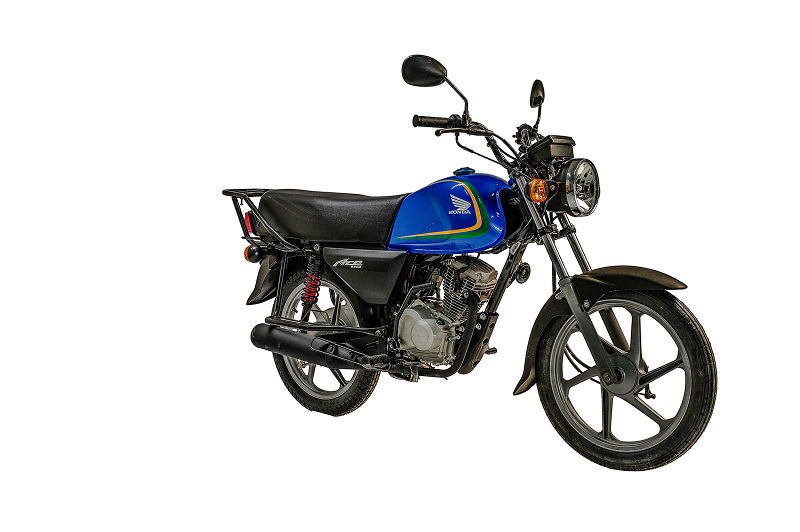

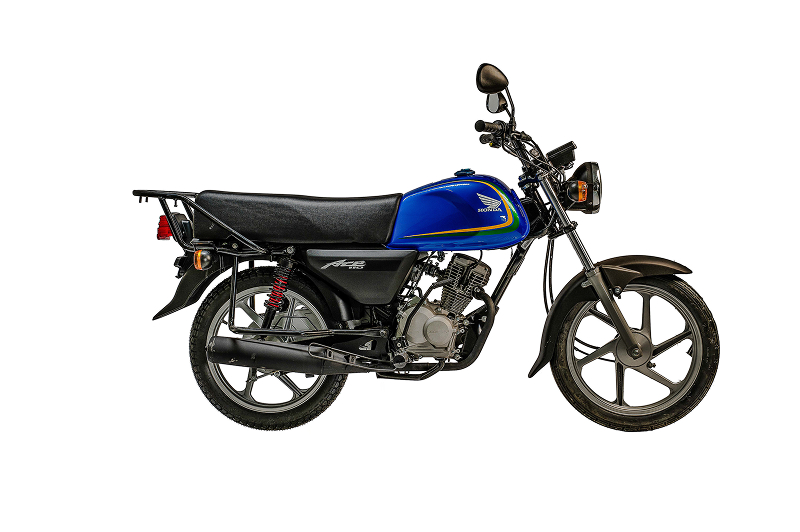

HONDA ACE 110

Honda Ace110 is a model which realizes Honda’s passion to “serve people worldwide with the joy of expanding their life’s potential”. It is equipped with a functional & powerful 110cc engine with proven durability and fuel efficiency. Boasts of customer’s satisfaction and convenience with features such as a comfortable & long seat and highly durable front and rear suspension. It was developed specially for commercial Taxi popularly called Boda Boda in some African states.
The Ace 110 is built with high quality Japanese technology and has been tested to ensure that it complies with international standards.

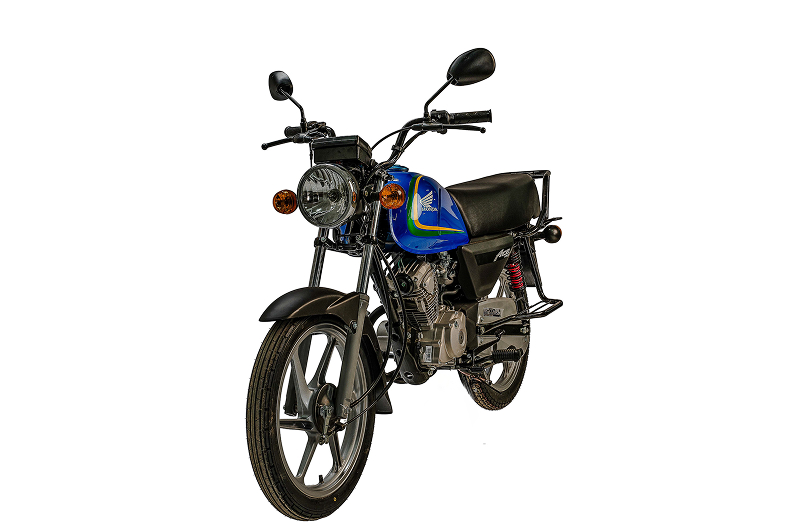

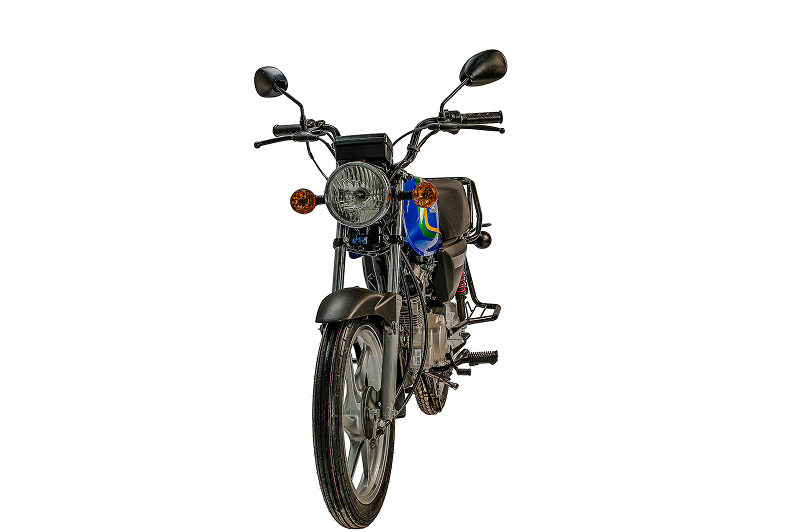

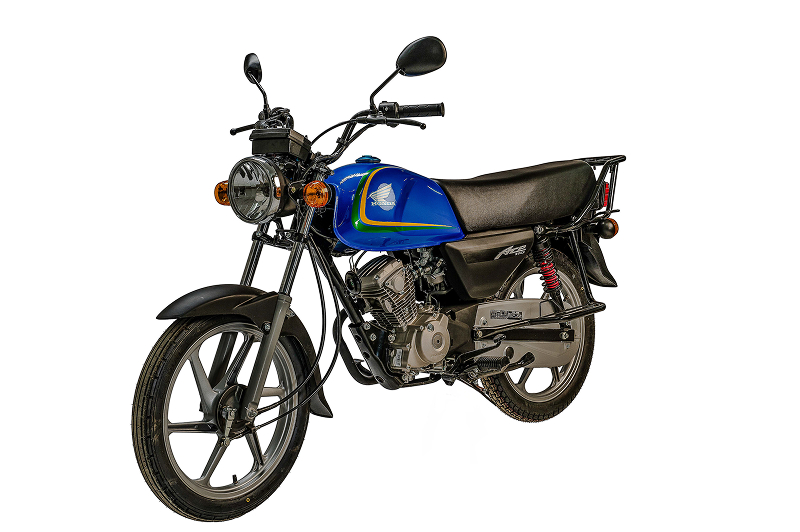

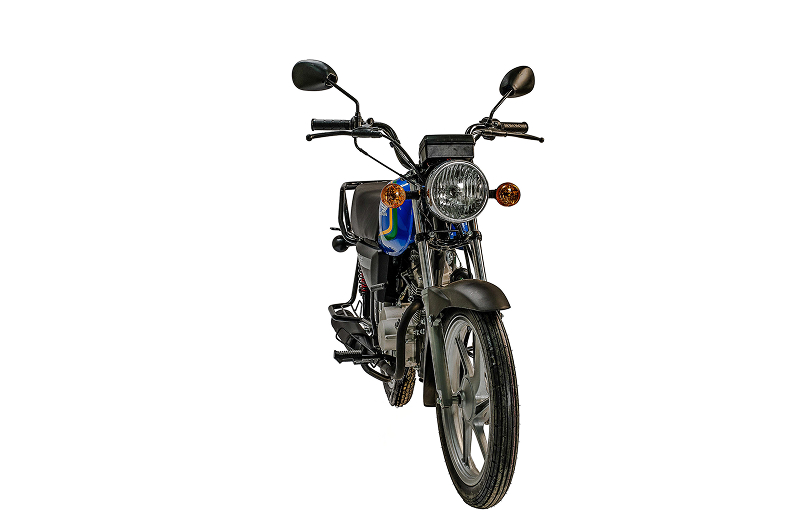

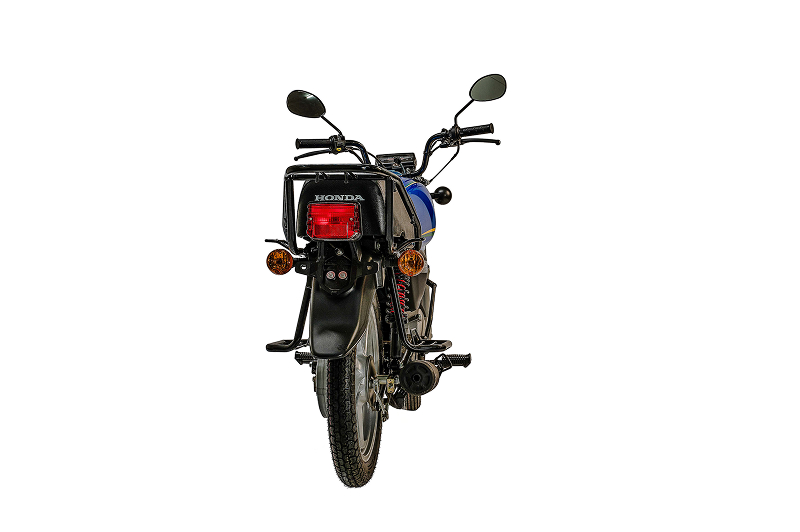

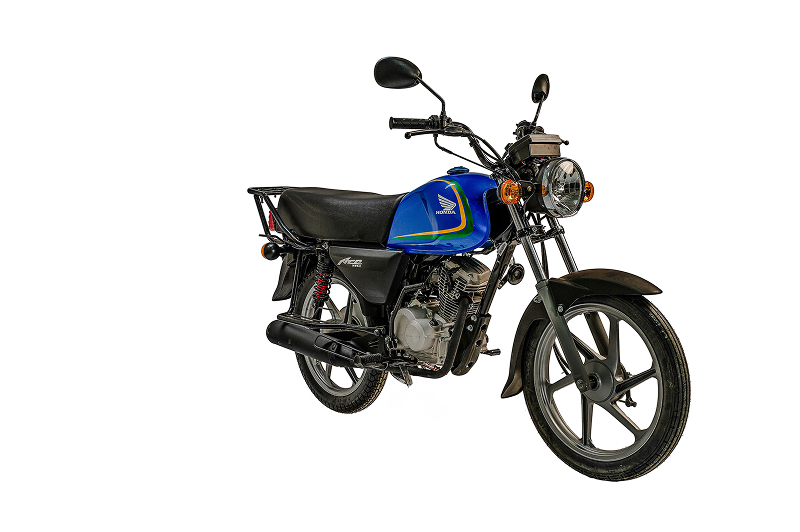

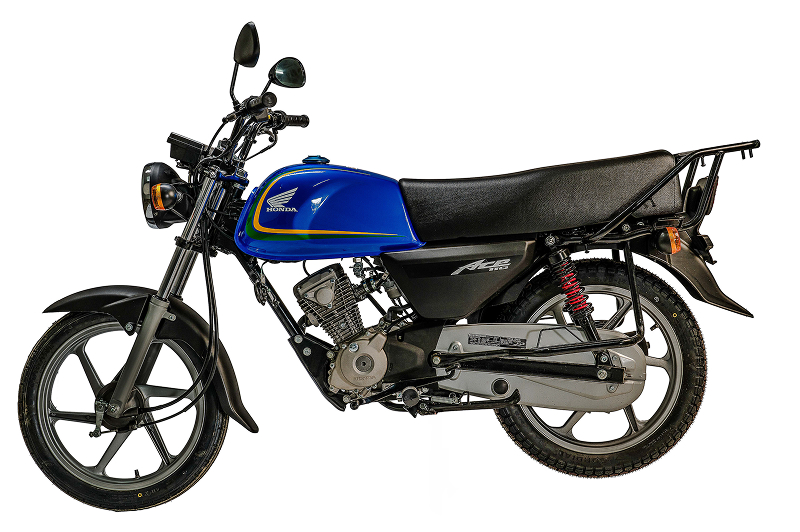

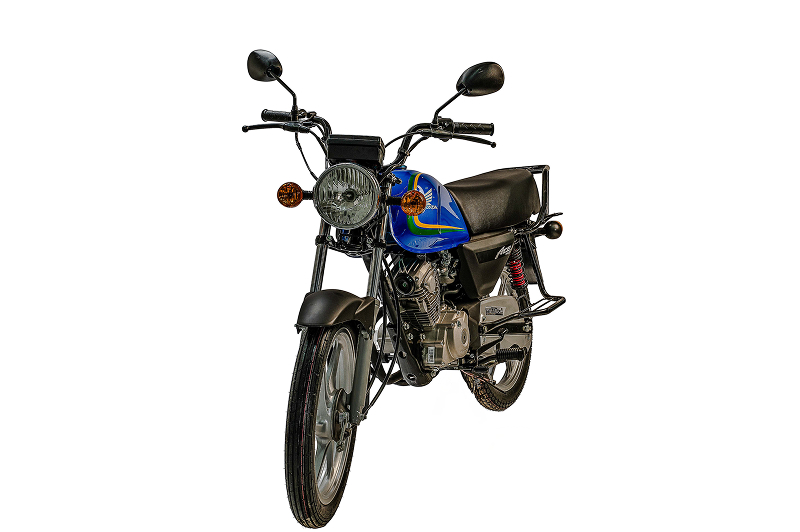

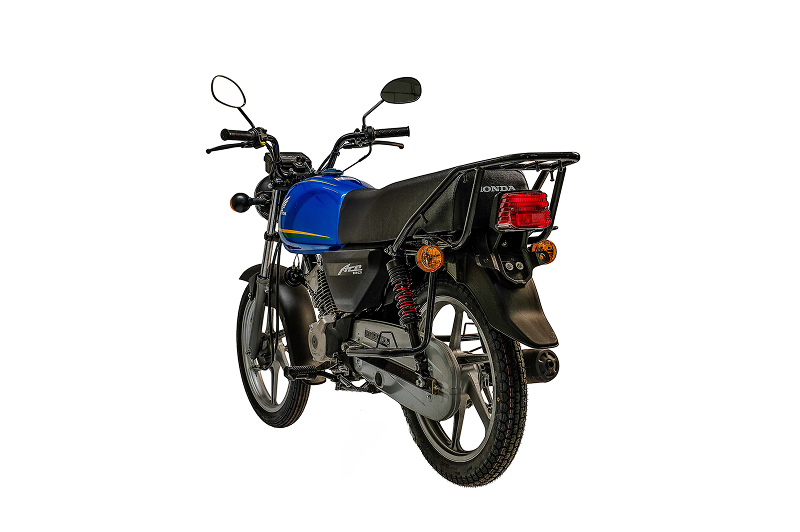

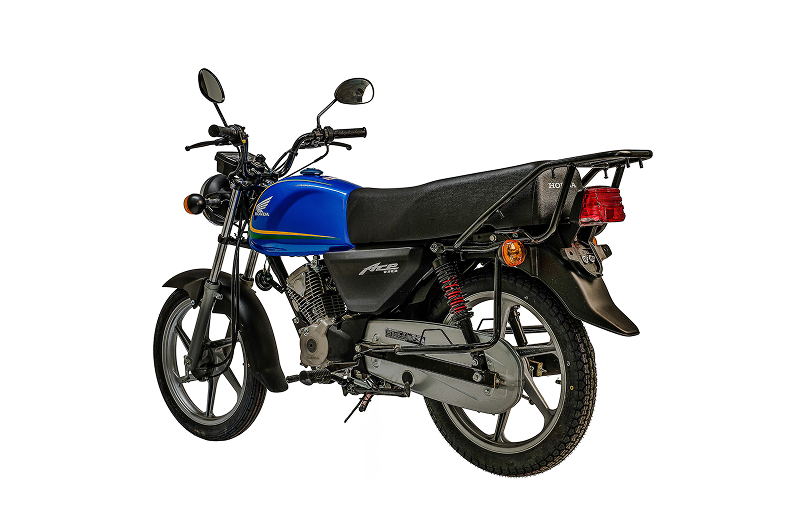

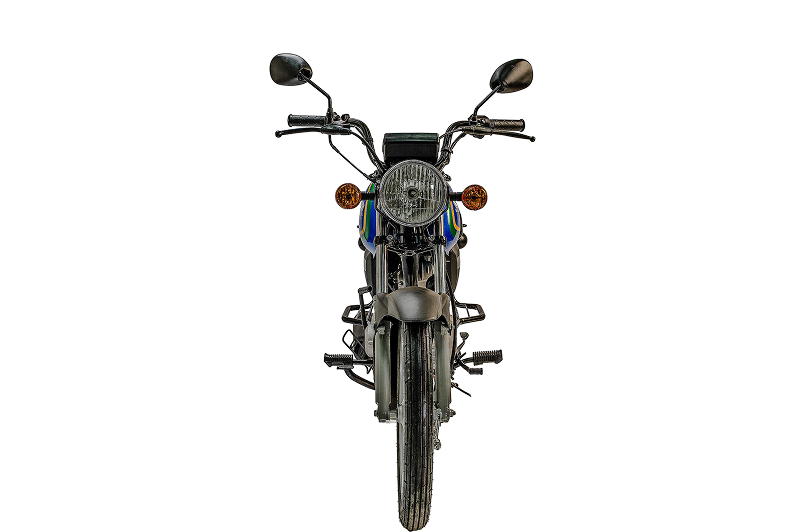

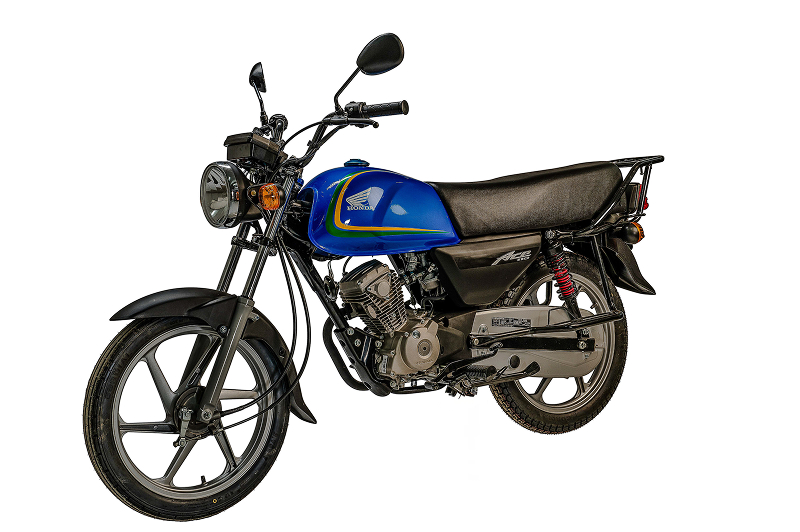

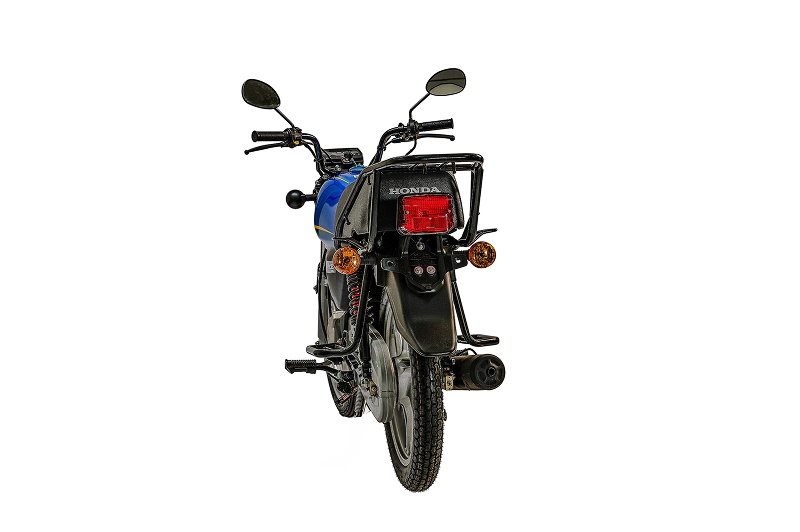

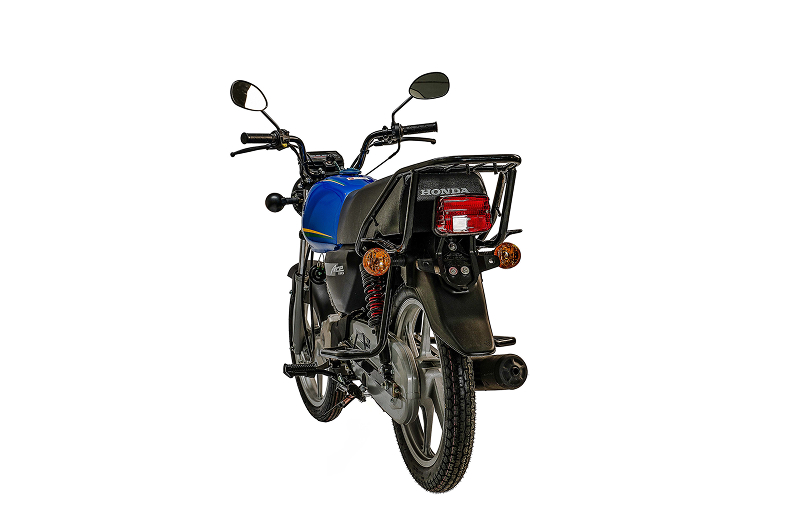

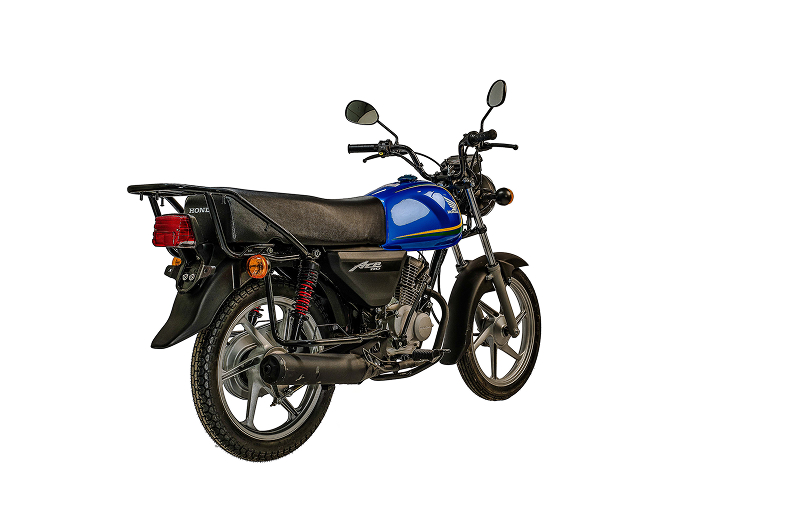

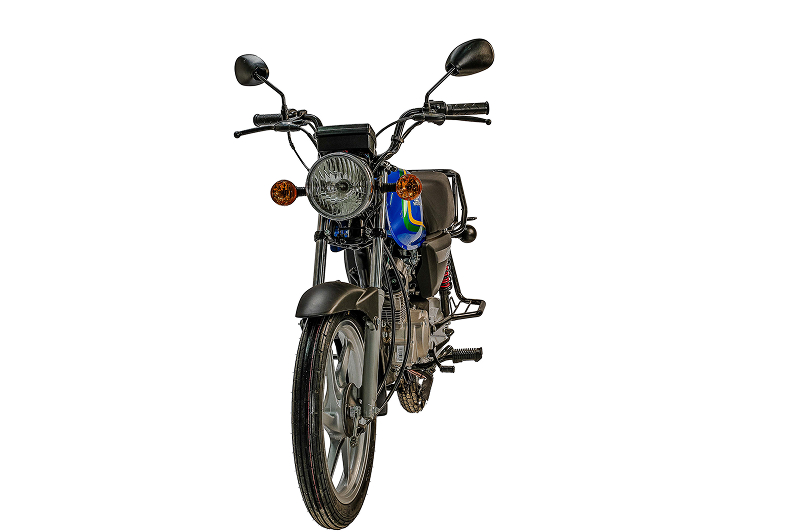

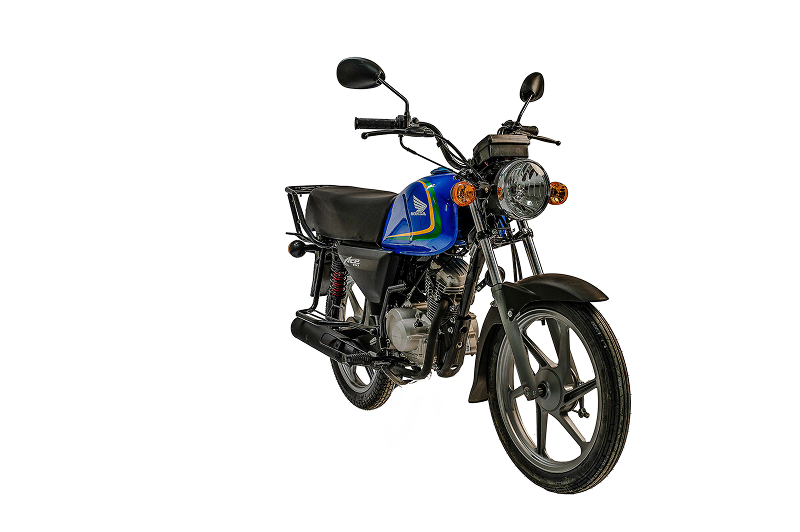

Drag below to rotate

TECHNICAL SPECIFICATIONS

Engine4-Stroke,OHC, Single Cylinder
Number of Gears4-Speed
CoolingAir-Cooled
Displacement110cc
Max. Net Power6.07 KW/7,000 rpm
Max. Net Torque8.9 Nm/6,000 rpm
Bore x Stroke50.000 mm x 55.609 mm
Compression Ratio9.0:1
Starting MethodKick Start
IgnitionCDI
Transmission TypeManual
Dimension (LxWxH)1,990 mm x 733 mm x 1,044 mm
Wheelbase1,273 mm
Seat Height814 mm
Ground Clearance162 mm
Kerb Weight105 kg
Fuel Tank CapacityMain: 12L / Reserve 1.4L
Tyre Size Front2.75 – 17 41P
Tyre Size Rear3.00 – 17 50P
Front BrakeDrum
Rear BrakeDrum
Frame TypeDiamond Steel
Front SuspensionTelescopic Fork
Rear SuspensionSwing-arm

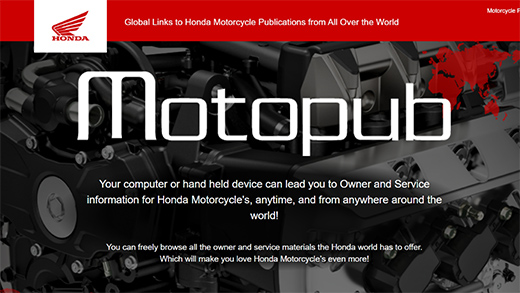

Motopub (portal for service publications)
